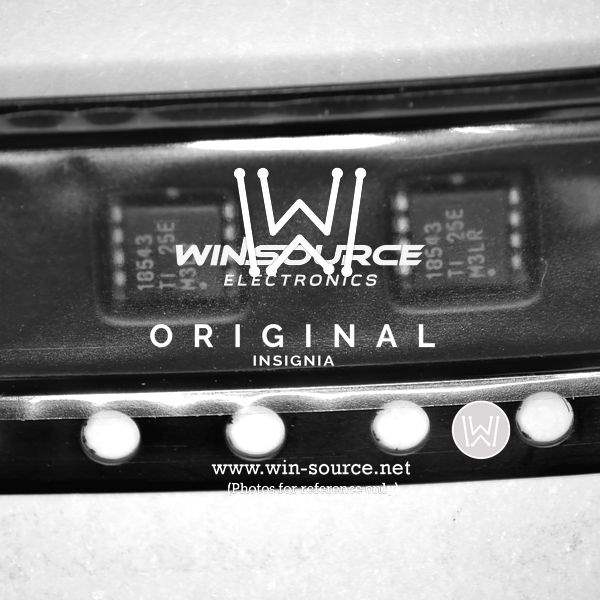

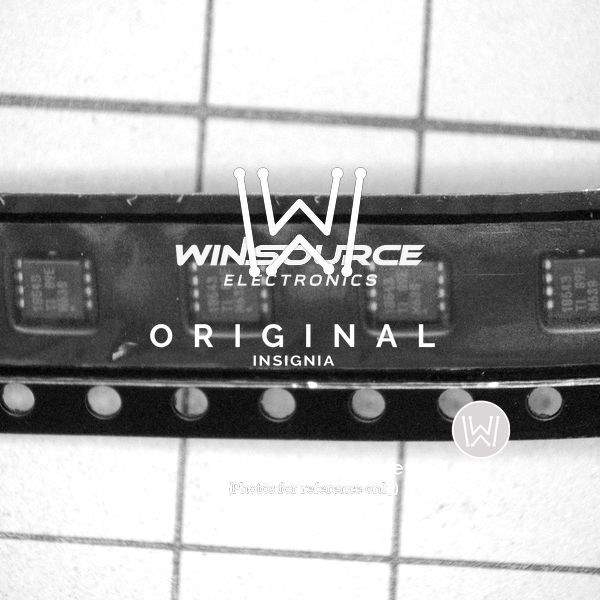

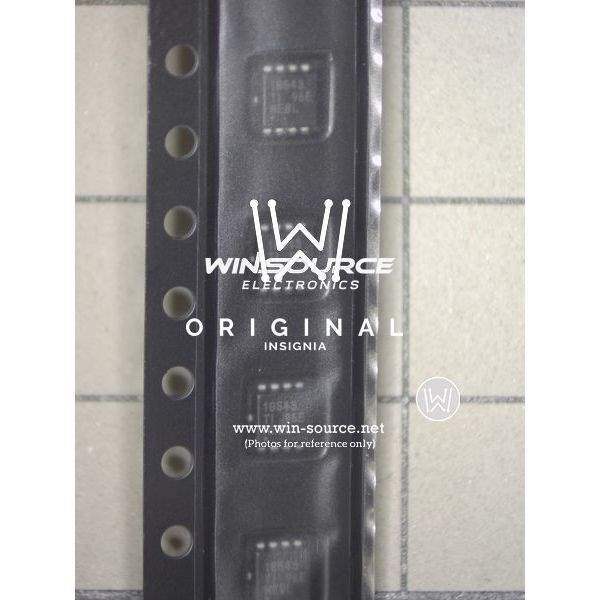

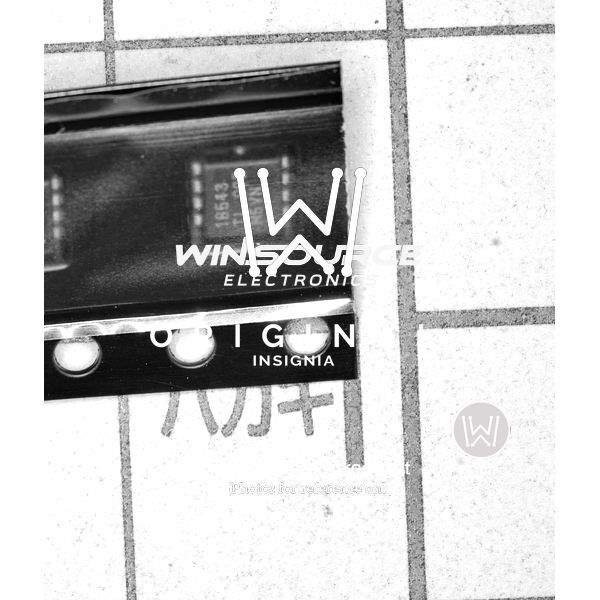

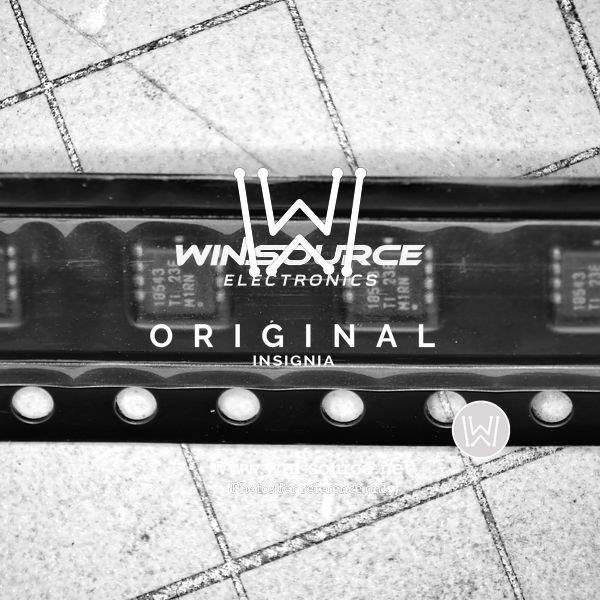

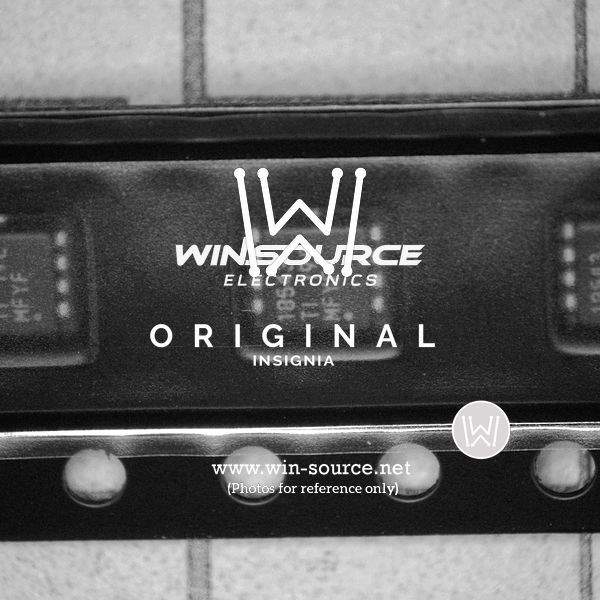

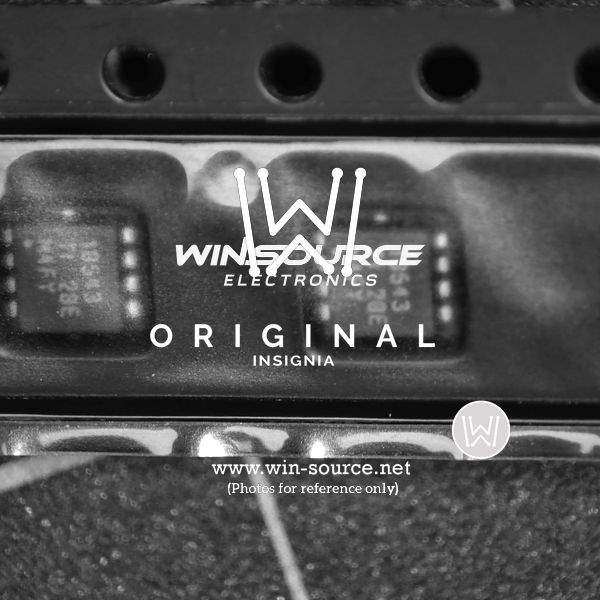

The CSD18543Q3A is a state-of-the-art N-Channel NexFET™ power MOSFET from Texas Instruments, designed to deliver high efficiency and power density for a wide range of applications. This MOSFET features ultra-low on-resistance and gate charge, making it an ideal choice for power management tasks where minimizing losses is critical.

Key Features

• Low On-Resistance: The CSD18543Q3A boasts an exceptionally low drain-to-source on-resistance (R<sub>DS(on)) of just 8.7 mΩ at V<sub>GS = 10 V, which translates to reduced conduction losses and improved overall efficiency.
• Ultra-Low Q<sub>g: With a gate charge (Q<sub>g) of only 17 nC, this MOSFET enables fast switching speeds, further enhancing performance in high-frequency applications.
• High Continuous Drain Current: It supports a continuous drain current (I<sub>D) of 100 A, making it suitable for high-power applications.

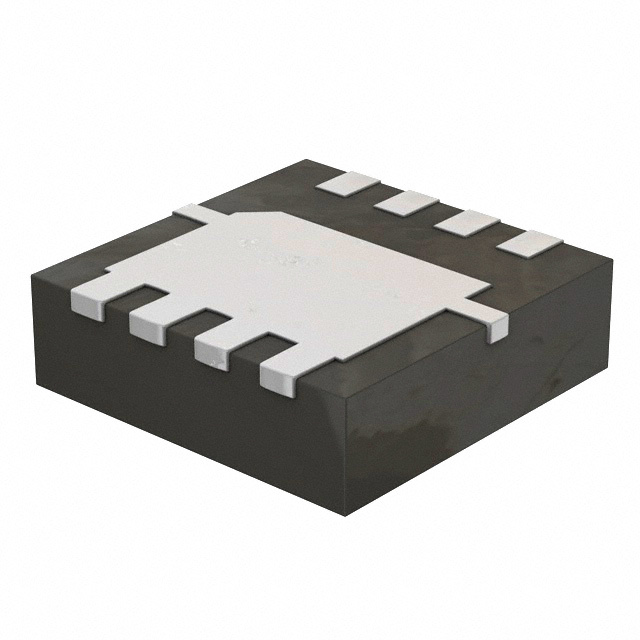

• Thermal Management: The device is encapsulated in a SON 5mm x 6mm plastic package, which aids in excellent thermal management and provides a low thermal resistance path for heat dissipation.
• RoHS Compliant: The CSD18543Q3A is RoHS compliant, ensuring that it meets environmental standards by avoiding the use of certain hazardous substances.

Applications

The CSD18543Q3A is versatile and can be used in a variety of applications, including:

• DC/DC Converters
• Motor Drives
• Power Supplies
• Load Switches
• Battery Management Systems

Advantages

By integrating the CSD18543Q3A into your design, you can expect several advantages:

• Enhanced power efficiency due to low R<sub>DS(on) and Q<sub>g
• Improved thermal performance, enabling higher power density
• Reduction in switching losses for high-frequency operations
• Compliance with environmental standards, promoting sustainability

Overall, the CSD18543Q3A from Texas Instruments is a robust and reliable choice for designers looking to optimize their power management solutions with a high-performance, energy-efficient MOSFET.
