The Texas Instruments CSD19532Q5B is a state-of-the-art N-channel NexFET™ power MOSFET designed to deliver high performance in power management applications. This highly efficient device is a testament to Texas Instruments' commitment to providing innovative solutions for power supply challenges. The CSD19532Q5B is well-suited for a range of applications, including synchronous buck converters, server and telecom power supplies, and industrial power designs.

Key Features

• Low R<sub>DS(on): The device boasts an ultra-low drain-source on-resistance of only 8 mΩ at V<sub>GS = 10 V, which significantly reduces power losses and improves overall efficiency.
• High Continuous Drain Current (I<sub>D): It supports a high continuous drain current of up to 100 A, making it capable of handling high power applications with ease.

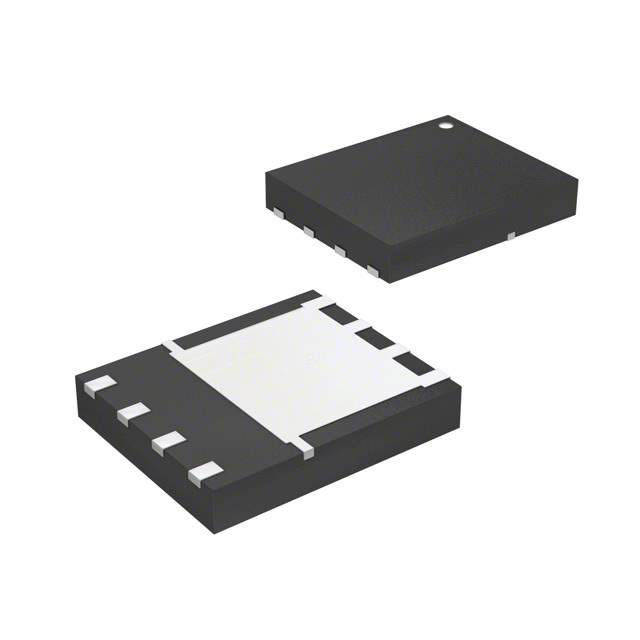

• Thermal Management: The CSD19532Q5B comes in a compact SON 5x6 mm plastic package with an exposed pad for enhanced thermal performance, ensuring reliable operation even under high power and temperature conditions.
• Fast Switching Speed: Designed for fast switching applications, this MOSFET minimizes switching losses, which is critical for high-frequency power supplies.

Applications

Thanks to its robust feature set, the CSD19532Q5B is ideal for a variety of applications:

• DC/DC Converters
• Motor Drives
• Power Over Ethernet (PoE) Systems
• Point-of-Load (POL) Modules
• Energy-Efficient Power Supplies

Quality and Reliability

As with all Texas Instruments products, quality and reliability are at the forefront. The CSD19532Q5B MOSFET is manufactured to meet the highest industry standards, ensuring a reliable performance for critical applications. With its advanced technology and proven durability, this device is designed to enhance system longevity and reduce the need for maintenance or replacements.

Conclusion

The Texas Instruments CSD19532Q5B NexFET™ power MOSFET is a high-performance solution designed for efficient power management. Its low on-resistance, high current capability, excellent thermal properties, and fast switching speeds make it an excellent choice for designers looking to optimize their power systems for both performance and reliability.
