The CSD25480F3T is a state-of-the-art power MOSFET designed and manufactured by Texas Instruments, a leader in semiconductor solutions. This MOSFET is part of the NexFET™ product line, which is renowned for its high performance and efficiency in power management applications.

Key Features

• Ultra-Low On-Resistance: The CSD25480F3T boasts an exceptionally low on-resistance (R<sub>DS(on)) of just 8.9 mΩ at V<sub>GS = 4.5 V, which minimizes conduction losses and enhances overall efficiency.

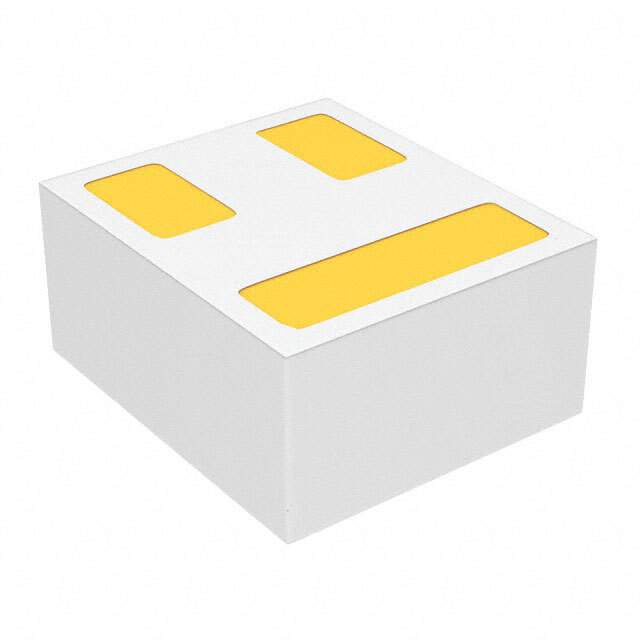

• Advanced Power Package: Encased in a compact 3 mm x 3 mm SON package, this MOSFET is designed for space-constrained applications without compromising on power handling capabilities.
• High Continuous Drain Current: It supports a robust continuous drain current (I<sub>D) of 15 A, enabling it to handle high power density applications with ease.
• Optimized Gate Charge: With a low gate charge (Q<sub>g), the CSD25480F3T facilitates fast switching, reducing switching losses and improving AC performance.

Applications

The CSD25480F3T is versatile and can be used in a variety of applications, including:

• DC/DC Converters
• Motor Control Circuits
• Power Supplies
• Load Switches
• Point of Load (POL) Modules

Performance and Quality

Texas Instruments is committed to delivering high-quality components that meet rigorous industry standards. The CSD25480F3T is no exception, offering superior thermal performance and reliability. It is designed to operate over a wide temperature range, ensuring stability and performance under varying environmental conditions.

Environmental Considerations

The CSD25480F3T is RoHS compliant and lead-free, reflecting Texas Instruments' dedication to environmental responsibility. This MOSFET is an excellent choice for designers looking to create eco-friendly and energy-efficient electronic systems.

For detailed specifications, application notes, and additional resources, please refer to the official Texas Instruments datasheet for the CSD25480F3T.
