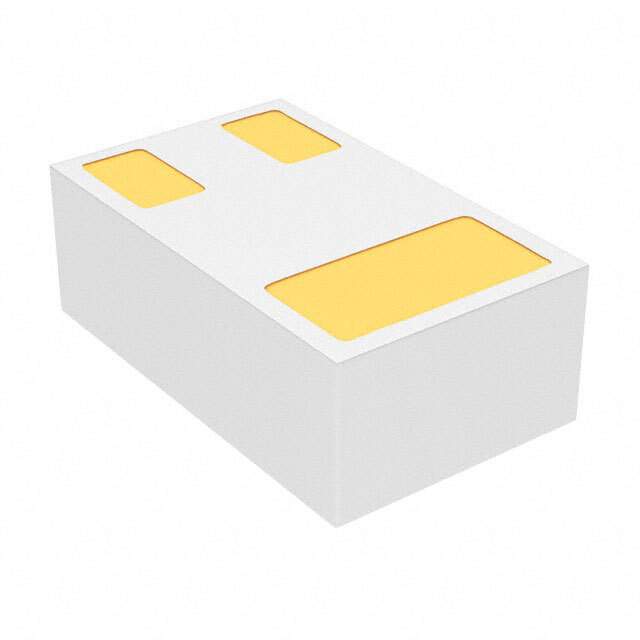

Product Overview: Texas Instruments CSD25481F4T

The Texas Instruments CSD25481F4T is a state-of-the-art MOSFET designed to meet the demanding requirements of modern electronic applications. This high-performance, ultra-small device is part of Texas Instruments' NexFET™ technology line, which is renowned for its power efficiency and reliability.

Key Features

• Ultra-Small Footprint: The CSD25481F4T comes in an ultra-compact 0.6 mm x 1.0 mm footprint, making it an ideal choice for space-constrained applications.
• Low On-Resistance: With an exceptionally low on-resistance (R<sub>DS(on)), this MOSFET ensures minimal power loss and improved efficiency for power management circuits.
• High Continuous Drain Current: It supports a high continuous drain current (I<sub>D), which is suitable for high-performance applications that require robust current handling capabilities.
• Low Threshold Voltage: The device features a low threshold voltage (V<sub>GS(th)), providing improved control and responsiveness in low-voltage operations.
• Advanced Packaging: Texas Instruments' advanced packaging technology ensures excellent thermal performance and contributes to the device's overall durability.

Applications

The CSD25481F4T is versatile and can be used in a variety of applications, including:

• Power supply modules
• DC/DC converters
• Battery management systems
• Load switches
• Portable electronics
• Wireless networking equipment

Performance and Quality

With Texas Instruments' commitment to quality, the CSD25481F4T is manufactured to the highest standards. The device's performance is characterized by fast switching speeds, low gate charge (Q<sub>g), and a robust body diode, which together provide increased efficiency and reliability in a wide range of operating conditions.

Conclusion

The Texas Instruments CSD25481F4T is an excellent choice for designers looking for a compact, efficient, and reliable MOSFET solution. Its advanced features and versatile applications make it a valuable component in any power management or electronic switching system.
