Product Overview: CSD85302LT from Texas Instruments

The CSD85302LT is a state-of-the-art, high-performance, dual N-Channel NexFET™ power MOSFET designed by Texas Instruments. This advanced technology component is optimized for power conversion applications and is an excellent choice for a wide range of electronic circuits requiring efficient power management.

Key Features

• Low Drain-Source On-Resistance: The CSD85302LT boasts an ultra-low drain-source on-resistance (R<sub>DS(on)) of just 8.7 mΩ at V<sub>GS = 4.5 V, which significantly reduces power losses and improves overall efficiency.
• High Continuous Drain Current: With a high continuous drain current (I<sub>D) of 30 A, this MOSFET can handle high power applications with ease.
• Dual N-Channel Configuration: The dual N-channel configuration allows for flexibility in design, making it suitable for synchronous buck converters and other applications where two N-Channel MOSFETs are required.

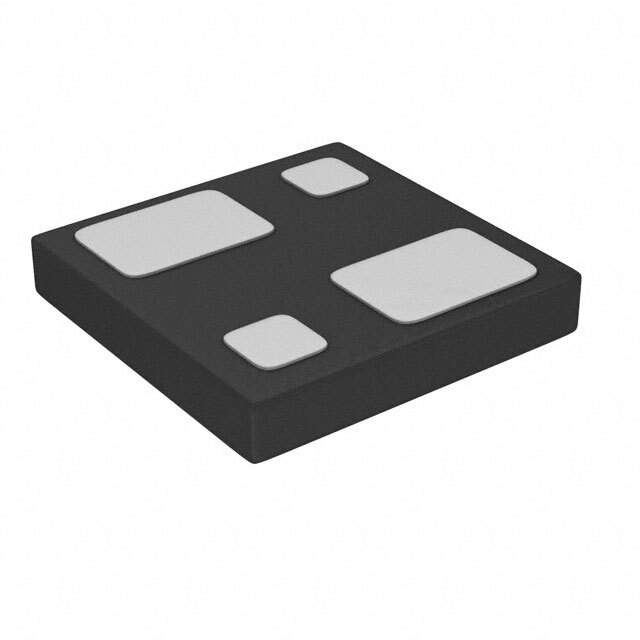

• Compact Footprint: The CSD85302LT is housed in a compact SON 3x3mm package, which minimizes board space without compromising performance.
• High-Speed Switching: Designed for fast switching applications, the CSD85302LT minimizes switching losses, making it ideal for high-frequency power supplies and DC-DC converters.

Applications

The CSD85302LT is versatile and can be used in various applications, including:

• DC-DC Converters
• Power Management for CPUs, GPUs, and Memory
• Point of Load (POL) Modules
• Motor Control Circuits
• Synchronous Buck Converters

Quality and Reliability

Texas Instruments is known for its commitment to quality, and the CSD85302LT is no exception. It is designed to meet the rigorous demands of modern electronic devices, ensuring reliability and performance. This MOSFET is RoHS compliant and is designed to withstand the tough conditions typical in industrial and commercial environments.

Conclusion

In summary, the CSD85302LT from Texas Instruments is a highly efficient, reliable, and versatile component that offers designers a powerful solution for their power management needs. Its low on-resistance, high current capability, and fast switching make it an excellent choice for a wide range of applications.
