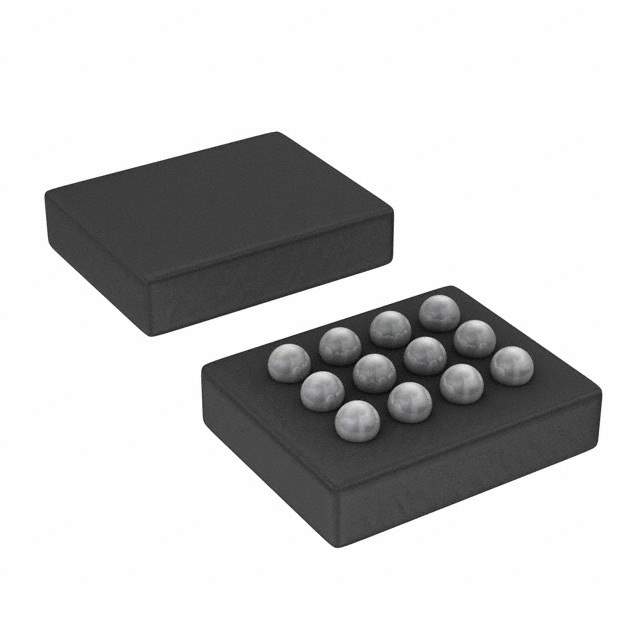

CSD86311W1723 Real Image
Same model may have multiple batches, images only for reference.

CSD86311W1723

Part No CSD86311W1723
Manufacturer Texas Instruments
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET 2N-CH 25V 4.5A 12DSBGA
Datasheet
CSD86311W1723 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
FET Type 2 N-Channel (Dual)
FET Feature Logic Level Gate
Drain-Source Breakdown Voltage 25V
Continuous Drain Current at 25°C 4.5A
Maximum Rds On at Id,Vgs 39 mOhm @ 2A, 8V
Gate-Source Threshold Voltage 1.4V @ 250μA
Max Gate Charge 4nC @ 4.5V
Max Input Capacitance 585pF @ 12.5V
Maximum Power Dissipation 1.5W
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 12-DSBGA (1.53x1.98)
Win Source Part Number 101529-CSD86311W1723
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CSD86311W1723 CAD Model

Description

Optimize your power delivery with the CSD86311W1723, a dual N-channel MOSFET with unparalleled energy-saving characteristics.

Features and Benefits

  • High-frequency operation suitable for compact designs
  • Low Rds(on) for reduced conduction losses
  • Superior avalanche capability
  • Compact dual package design

Applications

  • Server power supplies
  • Automotive systems
  • Gaming consoles
  • Telecommunication equipment

This MOSFET is perfect for high-performance applications demanding stringent power efficiency.
