Same model may have multiple batches, images only for reference.

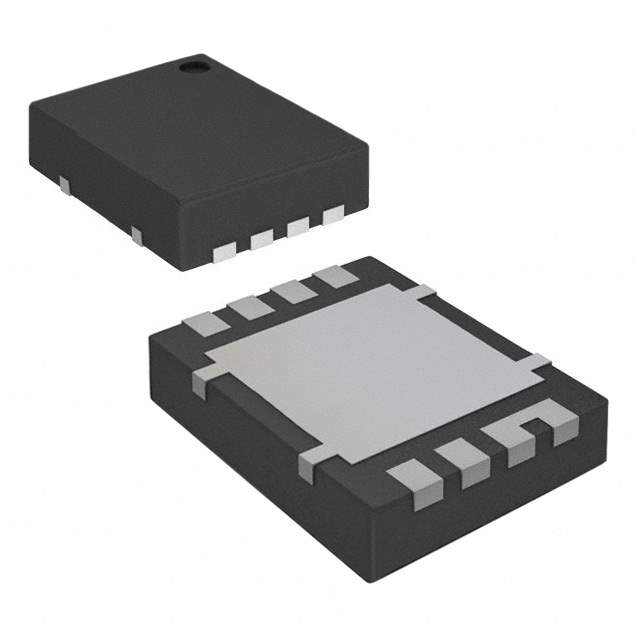

CSD87352Q5D Real Image
Same model may have multiple batches, images only for reference.

CSD87352Q5D

Part No CSD87352Q5D
Manufacturer Texas Instruments
Catalog Transistors - FETs, MOSFETs - RF
Description High Frequency Synchronous Power Module / MOSFET 2N-CH 30V 25A 8SON
Datasheet
CSD87352Q5D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
FET Type 2 N-Channel (Dual)
FET Feature Logic Level Gate
Drain-Source Breakdown Voltage 30V
Continuous Drain Current at 25°C 25A
Gate-Source Threshold Voltage 1.15V @ 250μA
Max Gate Charge 12.5nC @ 4.5V
Max Input Capacitance 1800pF @ 15V
Maximum Power Dissipation 8.5W
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 8-LSON (5x6)
Win Source Part Number 114384-CSD87352Q5D
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name CSD87352Q5D
Introduction Date June 01, 2011
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian CSD87352Q5D CAD Model

Description

Product Description

The CSD87352Q5D dual N-channel MOSFET is optimized for a high-power, fast-switching synchronous buck converter. Its advanced technology provides excellent performance in critical automotive applications requiring stringent reliability and efficiency benchmarks.

Features and Benefits

  • Excellent thermal management with advanced package design
  • High efficiency for improved power savings
  • Enhanced switching speeds for performance-critical applications
  • Reduced electromagnetic interference (EMI)

Applications

  • Automotive power control units
  • Advanced driver-assistance systems (ADAS)
  • Industrial automation and motor drives
  • High-performance computing hardware
