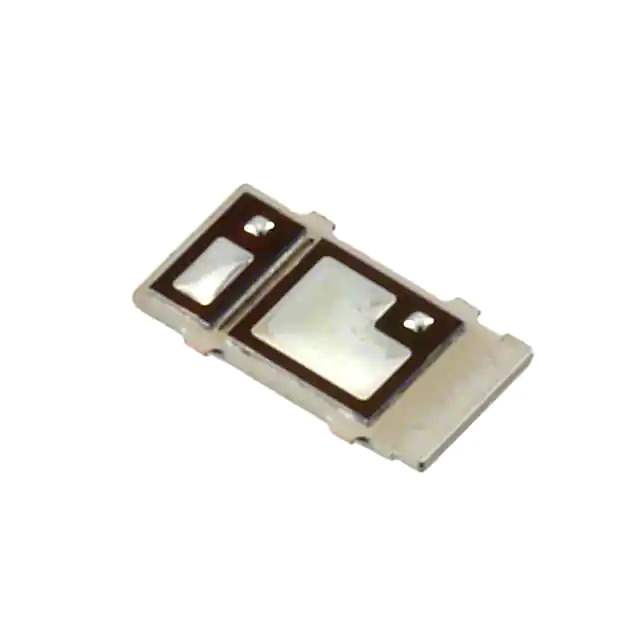

The CSD87384M is a state-of-the-art power solution designed by Texas Instruments, tailored for high-efficiency power conversion applications. This innovative product is part of the NexFET™ power block family, which is renowned for its advanced technology in providing compact and efficient power management solutions. The CSD87384M is specifically engineered to meet the rigorous demands of modern electronic devices, making it an ideal choice for a wide range of applications, including synchronous buck converters, point of load modules, and other power systems requiring a high-performance MOSFET solution.

Key Features

• Optimized Performance: The CSD87384M is designed to deliver exceptional power efficiency, thanks to its low on-resistance (R<sub>DS(on)) and reduced switching losses. The device's optimized gate charge and capacitance profile ensure fast switching speeds and minimal power dissipation.
• Integrated Power Block: Combining two MOSFETs in a single package, the CSD87384M offers a compact power block configuration. This integration simplifies the design process and reduces the footprint on the PCB, making it an excellent choice for space-constrained applications.
• Thermal Management: The device features an exposed thermal pad that provides improved thermal performance. This design enhancement ensures reliable operation even under high ambient temperatures or high current conditions.
• Robust Construction: Manufactured with Texas Instruments' cutting-edge process technology, the CSD87384M is built to withstand harsh environments and deliver consistent performance over its lifetime.

Applications

The versatility of the CSD87384M makes it suitable for a variety of applications, including:

• Server and telecom power supplies
• Networking equipment
• Computing peripherals
• Gaming consoles
• High-density DC/DC converters

Technical Specifications

Some of the key technical specifications of the CSD87384M include:

• V<sub>DS (Drain-to-Source Voltage): 30V
• R<sub>DS(on): 8 mΩ at V<sub>GS = 10V
• Continuous Drain Current (I<sub>D): 40A
• Power Stage Footprint: 5 mm x 6 mm

For those seeking an efficient and reliable power management solution, the Texas Instruments CSD87384M NexFET™ power block is the go-to choice. Its combination of performance, integration, and durability makes it a leading choice in the industry.
