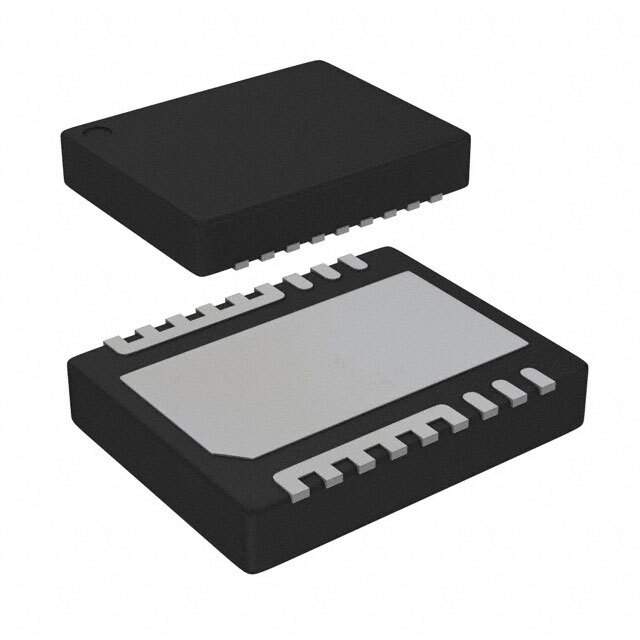

Product Overview: CSD97396Q4MT from Texas Instruments

The CSD97396Q4MT is a state-of-the-art power stage module from Texas Instruments, designed to deliver high-efficiency power conversion in a compact form factor. This innovative product integrates a driver IC along with two power MOSFETs in a single QFN package, providing an optimal solution for synchronous buck applications.

With its advanced NexFET™ technology, the CSD97396Q4MT boasts superior power density and switching performance, making it an ideal choice for a wide range of applications, including servers, telecom infrastructure, and computing systems. Its optimized layout and internal construction minimize parasitic inductance and resistance, leading to reduced switching losses and improved thermal performance.

The module's high level of integration simplifies design efforts, reduces component count, and shortens development time. Designers can take advantage of the CSD97396Q4MT's features to create smaller, more efficient power supply systems without sacrificing performance.

Key Features:

• High-Efficiency Power Conversion: Achieves up to 93% efficiency at 25A load, ensuring energy savings and reduced heat generation.
• Compact QFN Package: Measuring just 5mm x 6mm, the module's small footprint allows for high-density power designs.
• Integrated Driver and MOSFETs: Combines a driver IC with high- and low-side MOSFETs, providing a complete power stage solution.
• Advanced NexFET™ Technology: Utilizes cutting-edge MOSFET technology for improved performance and reliability.
• Optimized for Synchronous Buck Applications: Tailored for applications requiring efficient DC/DC power conversion.
• Easy to Use: Simplifies the design process and accelerates time-to-market with an integrated solution.

Applications:

• Server and Telecom Power Supplies
• Networking Equipment
• Computing Systems
• Industrial Power Systems
• Point of Load (POL) Modules

The CSD97396Q4MT from Texas Instruments represents a leap forward in power module design, providing designers with a highly efficient, reliable, and space-saving solution for their power conversion needs.
