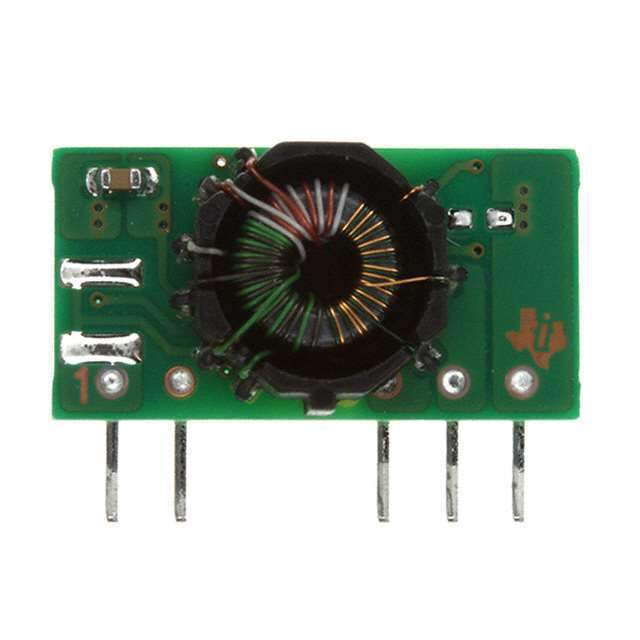

DCH010505DN7

Part No DCH010505DN7
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description CONV DC-DC MINI 1W 3KVDC ISOL
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Texas Instruments
Series DCH01
Packaging Tray
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 100mA, 100mA
Power (Watts) - Manufacture Series 1W
Voltage - Isolation 3kV (3000V)
Applications ITE (Commercial)
Mounting Style Through Hole
Package 7-SIP Module (5 Leads)
Size / Dimension 0.77" L x 0.30" W x 0.40" H (19.6mm x 7.6mm x 10.2mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 72%
Power (Watts) - Max 1W
Win Source Part Number 013836-DCH010505DN7
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian DCH010505DN7 CAD Model

Description

Description

The DCH010505DN7 is an expertly crafted electronic part designed to deliver superior performance in diverse applications, featuring advanced technology that ensures optimal functionality.

Features and Benefits

  • Superior Performance: Delivers high-quality results in demanding environments.
  • Compact Form Factor: Facilitates integration into space-constrained designs.
  • Longevity: Built to last with robust materials and engineering.

Applications

  • Power Management: Enhances efficiency in energy distribution systems.
  • Portable Electronics: Integrates into compact devices, providing a reliable power source.
  • Automotive Systems: Embedded in vehicular electronics for improved functionality.

The DCH010505DN7 is ideal for projects that demand efficient and robust electronic solutions.
