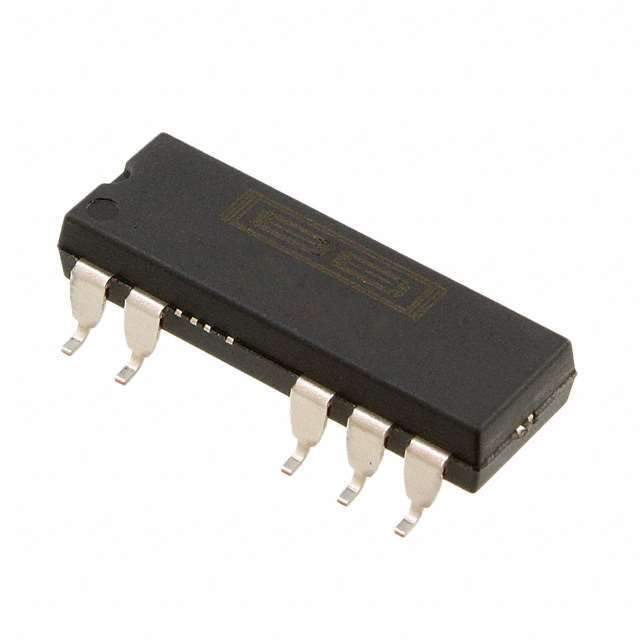

Introducing the DCP010505BP-U/7G4 from Texas Instruments

The DCP010505BP-U/7G4 is a high-performance, isolated power module from Texas Instruments, designed to offer both reliability and efficiency for a wide range of applications. This compact, surface-mount power module is part of the DCP01B series and is specifically engineered to deliver a fixed output voltage of 5V from an input voltage range of 4.5V to 5.5V, with an output power capability of up to 1 watt.

Key Features:

• Isolation: The DCP010505BP-U/7G4 provides 1000VDC of galvanic isolation between the input and output, which helps to protect sensitive electronic components from high voltage transients and reduces noise coupling.
• Efficiency: With an efficiency level of up to 85%, this power module ensures minimal power loss during operation, making it an energy-efficient choice for your designs.
• Compact Design: The small footprint of this device makes it an ideal solution for space-constrained applications. Its surface-mount package allows for easy integration into a variety of circuit boards.
• Regulated Output: The output voltage is regulated, which means it maintains a constant voltage level despite variations in input voltage or load conditions, ensuring stable operation for the connected load.
• Thermal Protection: The module includes over-temperature protection, safeguarding the device and your application from potential damage due to excessive heat.

Applications:

The DCP010505BP-U/7G4 is versatile and can be used in a multitude of applications, including but not limited to:

• Industrial control systems
• Mixed-signal applications (combining analog and digital circuits)
• Data acquisition systems
• Test and measurement equipment
• Telecommunications infrastructure

With its robust design and reliable performance, the DCP010505BP-U/7G4 is a suitable choice for designers looking to enhance the safety and stability of their systems. Texas Instruments' commitment to quality ensures that this power module meets the stringent requirements of a broad range of industrial and commercial applications.
