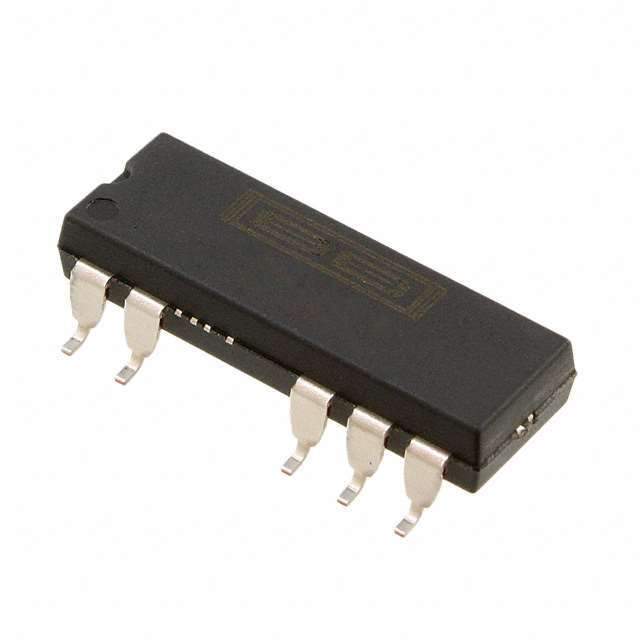

DCP010507DBP-U/7G4

Part No DCP010507DBP-U/7G4
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description IC REG ISOLATED +/-6.5V DL 7SOP
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Texas Instruments
Series DCP01B
Packaging Reel package
Type Isolated Module
Number of Outputs 2
Input Voltage MIN 4.5V
Voltage Input MAX 5.5V
Voltage - Output 1 6.5V
Voltage - Output 2 -6.5V
Current - Output (Maximum) 77mA, 77mA
Power (Watts) 1W
Voltage - Isolation 1kV (1000V)
Applications ITE (Commercial)
Features OTP, SCP
Operating Temperature Range -40°C ~ 100°C
Efficiency 81%
Mounting SMD
Package 14-SMD Module (7 Leads), Gull Wing
Dimension 0.78" L x 0.33" W x 0.21" H (19.7mm x 8.3mm x 5.3mm)
Win Source Part Number 772530-DCP010507DBP-U/7G4
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian DCP010507DBP-U/7G4 CAD Model

Description

Introducing the DCP010507DBP-U/7G4 from Texas Instruments

The DCP010507DBP-U/7G4 is a highly reliable, compact power supply module manufactured by the renowned Texas Instruments. This innovative product is designed to deliver exceptional performance for a wide range of applications, especially where isolated power distribution is crucial. Its cutting-edge technology ensures a stable and efficient power conversion, making it an ideal choice for professionals in the electronics industry.

Key Features:

  • Isolation: The DCP010507DBP-U/7G4 offers 1500 Vrms of minimum isolation voltage, providing a secure barrier between the input and output, which is vital for safety and noise reduction in sensitive applications.
  • Output Power: This module is capable of delivering up to 1W of output power, ensuring sufficient energy for your devices.
  • Dual Outputs: It features dual outputs of ±7V, which allows for versatile use in both positive and negative supply applications, making it incredibly flexible for different circuit configurations.
  • Efficiency: With an efficiency rate that is noteworthy for its class, the DCP010507DBP-U/7G4 ensures low power loss and heat generation, thus extending the life of the product and the devices it powers.
  • Compact Design: The small footprint of this power module is perfect for space-constrained applications, without compromising on power or efficiency.
  • Temperature Range: It operates within an industrial temperature range of -40°C to 85°C, guaranteeing reliability under various environmental conditions.
  • Regulation: Excellent load and line regulation specifications ensure that the output voltage remains constant regardless of changes in the input voltage or load conditions.

Applications:

The versatility of the DCP010507DBP-U/7G4 makes it suitable for a variety of applications, including:

  • Isolated Sensor Interfaces
  • Test Equipment
  • Industrial Control Systems
  • Data Acquisition Systems
  • Mixed Analog/Digital Circuits

With Texas Instruments' reputation for quality and durability, the DCP010507DBP-U/7G4 is a product that offers reliability and performance that professionals can trust. Whether for industrial, commercial, or sophisticated hobbyist projects, this power module is designed to meet the most demanding requirements, providing a combination of features that enhance its functionality and usability in your projects.
