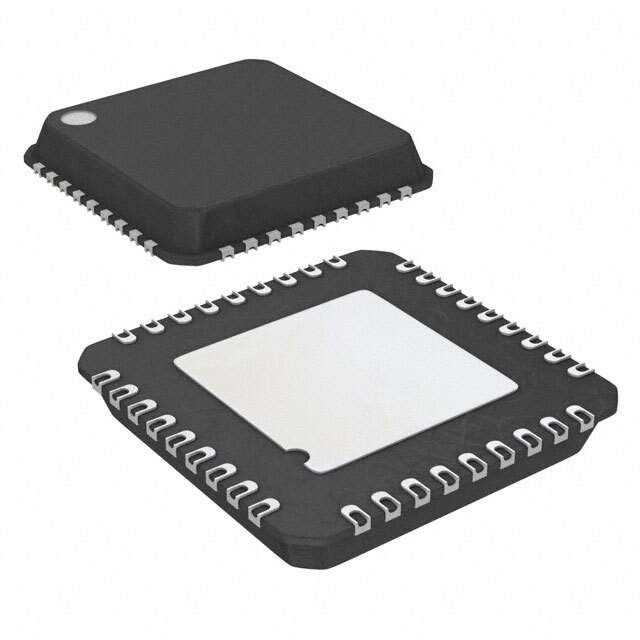

The DP83TC811RWRNDRQ1 from Texas Instruments is a robust, automotive-qualified physical layer transceiver designed for use in automotive and industrial applications. This state-of-the-art device supports 100BASE-T1 Ethernet, which enables high-speed data transmission over a single twisted-pair cable, thus reducing the weight and complexity of the cable harness in vehicles and industrial systems.

Key Features

• Single-Pair Ethernet: The transceiver is designed to operate over a single twisted-pair cable, supporting point-to-point connections for 100Mbps data rates in accordance with the IEEE 802.3bw standard.
• Automotive Qualified: As a product that meets the AEC-Q100 Grade 1 qualification, it is suitable for automotive applications, ensuring reliability under extreme conditions.
• Low Power Consumption: The DP83TC811RWRNDRQ1 is optimized for low-power operation, which is critical for automotive power budgets and helps to minimize the thermal footprint in tightly packed electronic control units (ECUs).
• Integrated Diagnostics: It includes advanced diagnostic features such as cable diagnostics, temperature monitoring, and signal quality monitoring, facilitating system-level diagnostics and robustness.
• Flexibility: The device offers flexibility in design with various power-down modes and the ability to interface with multiple types of microcontrollers or automotive processors.

Applications

The DP83TC811RWRNDRQ1 is ideal for a range of applications within the automotive sector, including but not limited to:

• Advanced Driver Assistance Systems (ADAS)
• Infotainment and Telematics Systems
• On-board Diagnostics and Vehicle Networking

Additionally, its robustness and high-speed data capabilities make it well-suited for industrial automation and control systems that require reliable data communication in harsh environments.

Conclusion

Overall, the DP83TC811RWRNDRQ1 is a high-performance, reliable solution for Ethernet connectivity in automotive and industrial applications. Its integration of advanced features and compliance with industry standards make it a top choice for designers looking to implement efficient and robust communication networks.
