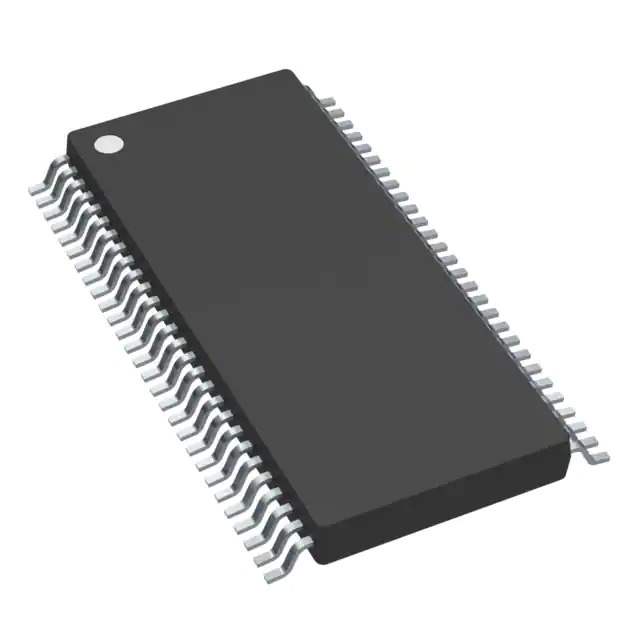

The DRV8301QDCAQ1 from Texas Instruments is a highly integrated motor driver that specifically caters to three-phase brushless DC (BLDC) motors. This advanced piece of technology is designed to streamline the motor control process, providing a compact, efficient, and reliable solution for automotive and industrial applications.

Key Features:

• High Performance: The DRV8301QDCAQ1 is capable of driving motors with up to 2.5A continuous current, ensuring smooth operation for a variety of demanding applications.
• Integrated Gate Drivers: This product includes three half-bridge drivers, as well as six PWM inputs, making it flexible and easy to control with a variety of PWM strategies.
• Smart Gate Drive: The smart gate drive architecture includes current-shunt amplifiers that provide precise current sensing for advanced control techniques and protection features.
• Protection Features: The DRV8301QDCAQ1 is equipped with a range of protection features, including overcurrent, overtemperature, and undervoltage lockout, ensuring the safety and longevity of the motor system.
• Automotive Qualified: As a Q1 device, it meets the rigorous standards required for automotive applications, making it suitable for use in vehicles.

Applications:

The versatility of the DRV8301QDCAQ1 makes it an ideal choice for a wide range of applications. It is particularly well-suited for:

• Automotive motor control systems such as power steering, pumps, and fans
• Electric power steering (EPS)
• Brushless DC motor drives
• Electric and hybrid vehicles
• Industrial automation systems

Technical Specifications:

The DRV8301QDCAQ1 operates over a wide voltage range and is available in a compact 56-pin VQFN package with exposed thermal pad for enhanced thermal dissipation. Its ambient temperature range is suitable for harsh environments, ensuring reliable performance when it matters most.

Conclusion:

The DRV8301QDCAQ1 from Texas Instruments stands out as a robust and versatile motor driver solution. Its integration of multiple features into one package simplifies design and reduces time to market for engineers looking to implement advanced motor control systems in automotive or industrial settings.
