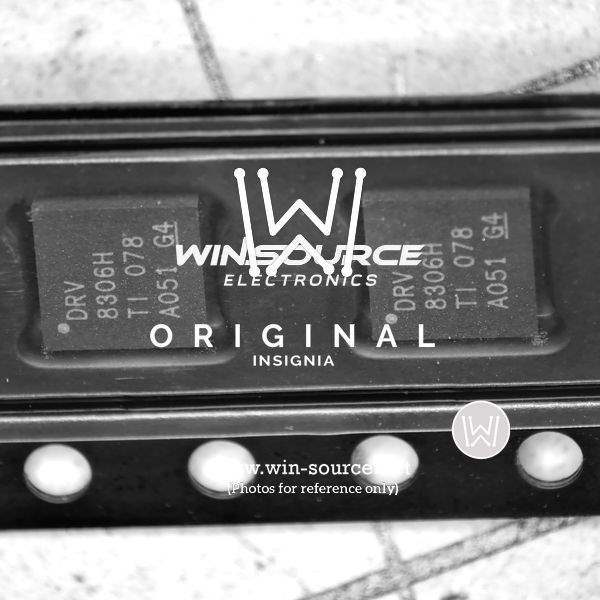

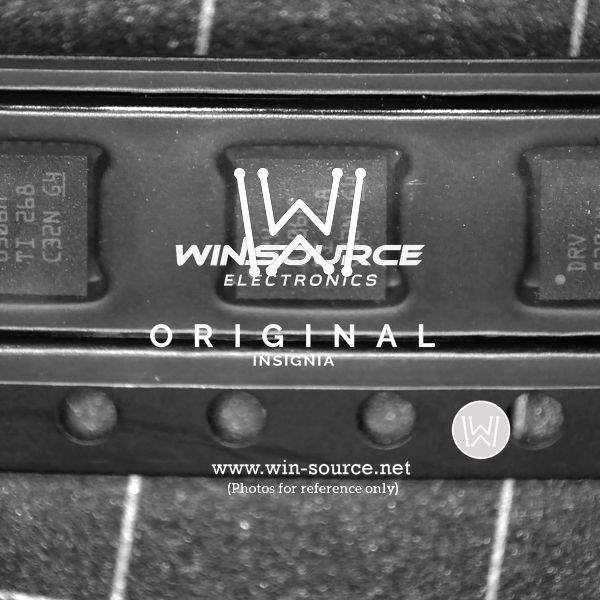

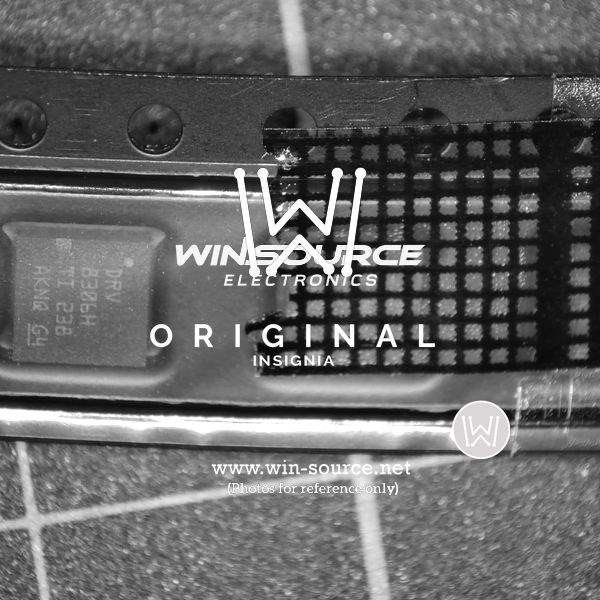

Product Overview: Texas Instruments DRV8306HRSMR

The Texas Instruments DRV8306HRSMR is a state-of-the-art motor driver designed for high-performance applications that require precision and efficiency. This sophisticated piece of technology is engineered to drive three-phase brushless DC (BLDC) motors, making it an ideal choice for a wide range of applications, including drones, cooling fans, pumps, and other automated equipment.

Key Features:

• Integrated Smart Gate Drive: The DRV8306HRSMR comes with six integrated MOSFET gate drivers, providing high-side and low-side drive with built-in micro-stepping indexer for smooth and precise motor control.
• Advanced Protection: It includes a suite of protection features such as overcurrent, overtemperature, undervoltage lockout, and cross-conduction prevention, ensuring reliable operation and extending the lifespan of the motor and the driver.
• Configurable Parameters: Users can configure multiple parameters, including the gain and blanking time, through the SPI or H/W interface, allowing for fine-tuning to match specific motor and application requirements.
• Versatile Power Supply: The device operates over a wide supply voltage range from 4.4V to 45V, accommodating various power environments and ensuring consistent performance.
• Compact Package: Housed in a highly compact 32-pin VQFN package, the DRV8306HRSMR saves valuable board space and is suitable for space-constrained applications.

Applications:

The versatility of the DRV8306HRSMR makes it an excellent choice for a multitude of applications that require efficient and precise motor control. Its robust design and comprehensive feature set make it particularly well-suited for:

• Consumer Electronics
• Automated Service Robots
• Power Tools
• Industrial Pumps and Fans
• Remote-Controlled Toys

Overall, the Texas Instruments DRV8306HRSMR motor driver is a powerful solution for designers looking to optimize their motor control systems with a reliable, high-performance driver that offers advanced features and a small footprint.
