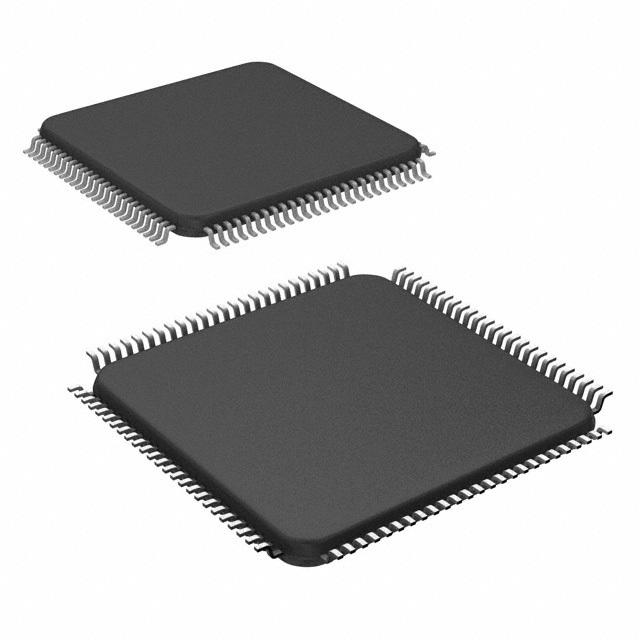

The DS90CR481VJD/NOPB from Texas Instruments is a state-of-the-art channel-link serializer that provides a high-speed serial interface between a graphics controller and a display panel. This device is part of Texas Instruments' extensive line of interface solutions and is designed to support display applications where high data throughput and cable simplification are required.

Key Features

• High-Speed Data Transmission: The DS90CR481VJD/NOPB offers a significant speed advantage, capable of serializing 24 to 48 bits of parallel RGB data and up to 3 bits of control data into a single LVDS (Low Voltage Differential Signaling) data stream.
• Reduced EMI: By utilizing LVDS technology, the DS90CR481VJD/NOPB reduces electromagnetic interference (EMI), which is crucial for maintaining signal integrity in sensitive applications.
• Bandwidth Efficiency: This device can operate at a pixel clock range of 25 MHz to 112 MHz, providing a bandwidth of up to 1.9 Gbps, ensuring efficient data transmission for high-resolution displays.
• Power Management: With an integrated power-down mode, the DS90CR481VJD/NOPB conserves power during periods of inactivity, making it an energy-efficient choice for portable and battery-operated devices.
• Compatibility: It is designed to be compatible with a wide range of graphics controllers and display panels, offering a versatile solution for various display interface requirements.

Applications

The DS90CR481VJD/NOPB is ideal for a variety of applications that require high-speed data transfer and minimal signal interference. These include:

• High-resolution digital display panels such as LCDs and OLEDs
• Notebooks and personal computers
• Industrial displays and medical imaging devices
• Automotive infotainment systems

Environmental and Quality Certifications

The DS90CR481VJD/NOPB is designed to meet rigorous industry standards, ensuring reliability and performance. It is available in a lead-free package and is compliant with RoHS standards, reflecting Texas Instruments' commitment to environmental responsibility.
