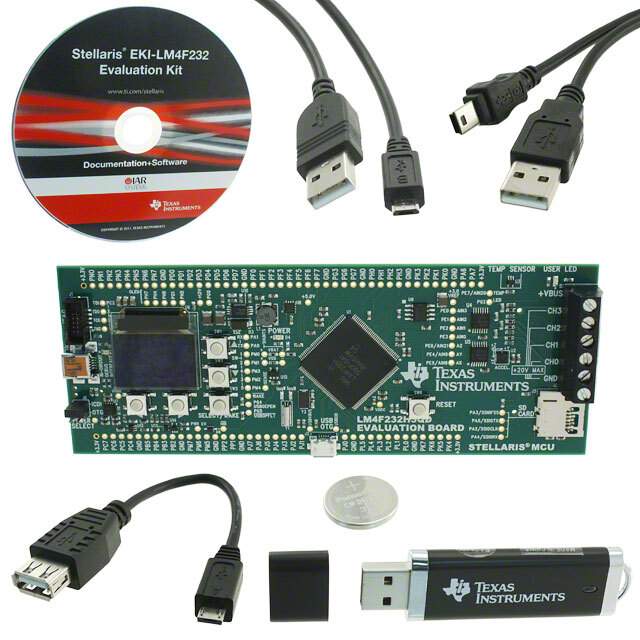

Product Overview: EKI-LM4F232 Evaluation Kit from Texas Instruments

The EKI-LM4F232 is a comprehensive evaluation platform designed by Texas Instruments (TI) for engineers and developers who aim to explore the capabilities and features of the Stellaris® LM4F232 ARM® Cortex™-M4F based microcontroller. This evaluation kit provides a seamless development experience, facilitating a quick transition from prototype to production with its rich set of peripherals and an extensive ecosystem of software and hardware support.

At the heart of the EKI-LM4F232 kit is the LM4F232H5QD microcontroller, which boasts a 32-bit ARM Cortex-M4F core with a floating-point unit (FPU) for efficient computation and signal processing. With a clock speed of up to 80 MHz, 256KB of flash memory, and 32KB of SRAM, this microcontroller is well-suited for a wide range of applications, including industrial control, medical devices, and home automation systems.

The evaluation kit includes an array of features to jumpstart development:

• A full-color QVGA touchscreen display, enabling rich user interface design and interaction.
• USB Host/Device/OTG connectivity, offering versatile options for communication and device interfacing.
• A suite of sensors, including an accelerometer and a temperature sensor, for immediate data acquisition and processing.
• Integrated Ethernet MAC+PHY, CAN, and serial interfaces for robust networking and communication capabilities.
• An in-circuit debug interface (ICDI) that allows for straightforward programming and debugging without the need for additional hardware.

Developers can take advantage of the extensive software support provided by TI, which includes the StellarisWare® software package. This comprehensive suite includes libraries, example code, and documentation to accelerate development. The StellarisWare® package is complemented by the support for real-time operating systems and middleware, further expanding the potential of the EKI-LM4F232 kit.

Whether it's for rapid prototyping or for educational purposes, the EKI-LM4F232 evaluation kit is an excellent tool for developers looking to harness the power of the Stellaris® LM4F232 microcontroller and to create innovative and sophisticated embedded systems.
