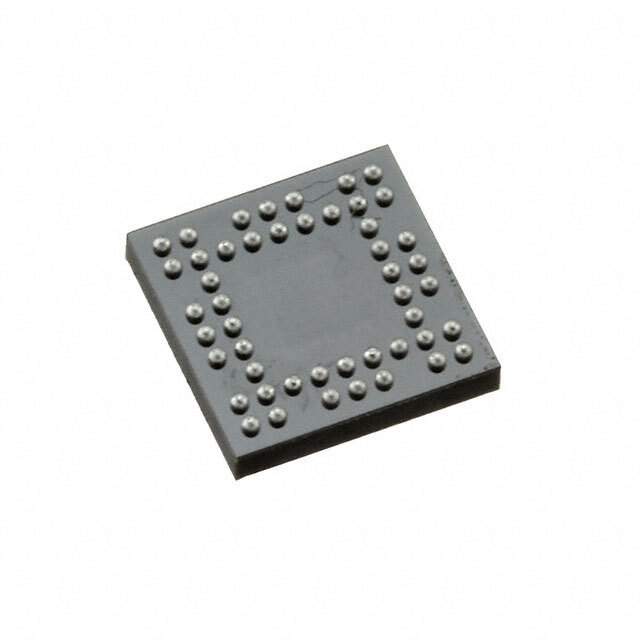

Introducing the HD3SS212ZQET from Texas Instruments

The HD3SS212ZQET is a state-of-the-art high-speed passive switch from Texas Instruments, designed to deliver exceptional performance for applications requiring signal multiplexing. This versatile component is part of the HD3SS212 series and comes in a compact QFN-16 package, making it a perfect fit for space-constrained applications.

At the heart of the HD3SS212ZQET is its ability to support two differential channels or four single-ended channels, providing flexibility in signal management. With its bidirectional capability, the switch can handle data rates up to 10 Gbps, making it ideal for high-speed interfaces like USB 3.0, SATA, and PCIe. This feature allows for seamless integration into a variety of high-speed data paths without compromising signal integrity.

The device boasts a low on-state resistance (RON) and low input capacitance, which minimizes insertion loss and signal attenuation, thus ensuring optimal signal fidelity. Additionally, the HD3SS212ZQET has been engineered with an emphasis on power efficiency, featuring a low-power mode to reduce power consumption when the switch is not actively in use.

For applications demanding robust performance, the HD3SS212ZQET comes equipped with an enhanced ESD protection system. This feature safeguards the device against electrostatic discharge events, ensuring long-term reliability and stability in even the most challenging environments.

Integration of the HD3SS212ZQET is straightforward, thanks to its compatibility with common logic levels and the provision of an easy-to-use enable pin. This allows designers to quickly incorporate the switch into their systems with minimal additional components or complex control logic.

Whether it's for consumer electronics, computing devices, networking equipment, or industrial systems, the HD3SS212ZQET from Texas Instruments stands out as a high-performance solution for high-speed signal switching. Its combination of speed, flexibility, and reliability makes it a top choice for designers looking to enhance their products with cutting-edge technology.

Explore the possibilities with the HD3SS212ZQET and experience the difference in quality and performance that Texas Instruments brings to the table.
