Product Overview

The INA2126UA is a precision instrumentation amplifier manufactured by Texas Instruments, designed to offer excellent accuracy and electrical performance for a wide range of applications. This versatile component is particularly well-suited for use in medical equipment, industrial process controls, and battery-powered devices due to its high input impedance, low power consumption, and ability to operate over a wide supply range.

Key Features

• High Precision: The INA2126UA provides a high level of accuracy with low offset voltage and low offset drift over temperature, ensuring reliable measurements in precision applications.
• Dual-Channel: It features two independent instrumentation amplifiers in one package, allowing for the simultaneous processing of two separate signals, which is ideal for differential signal applications.
• Wide Supply Range: The device can operate from a single supply of +2.7V to +36V or from dual supplies of ±1.35V to ±18V, making it versatile for various circuit configurations.
• Low Power Consumption: It is designed for low power operation, which is critical for battery-powered and portable applications, ensuring extended battery life and reduced thermal issues.
• Adjustable Gain: Gain can be easily configured with external resistors, providing design flexibility and the ability to adapt to different application requirements.

Applications

• Medical instrumentation
• Industrial process controls
• Strain gauges
• Transducer amplifiers
• Data acquisition systems

Package and Quality

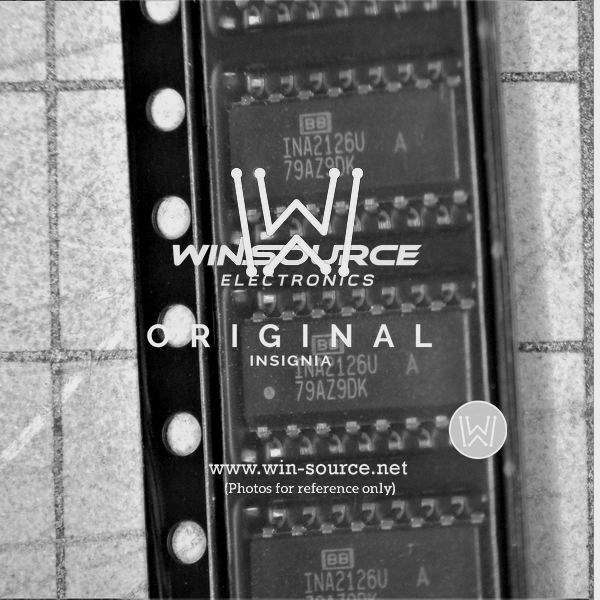

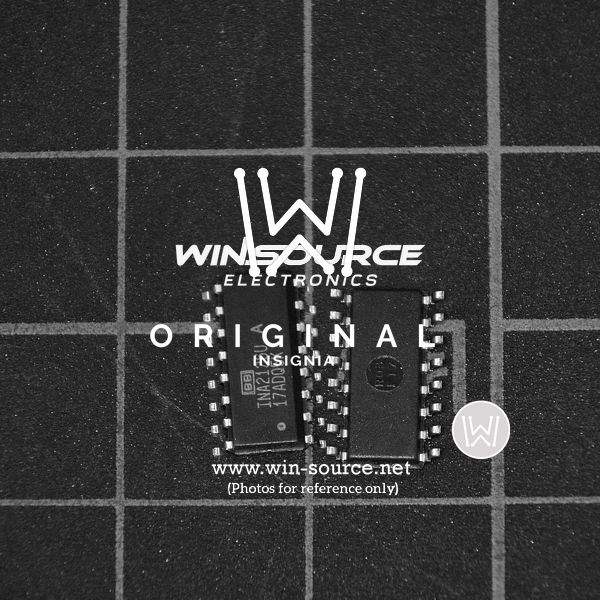

The INA2126UA is offered in a standard SOIC-16 package, which is compact and suitable for space-constrained applications. Texas Instruments is known for its commitment to quality, and this product is no exception. It is built to meet high standards of reliability and performance, ensuring that it can withstand the rigors of demanding environments.

With its combination of precision, flexibility, and reliability, the INA2126UA from Texas Instruments stands out as a top choice for designers looking to enhance the performance of their electronic systems.
