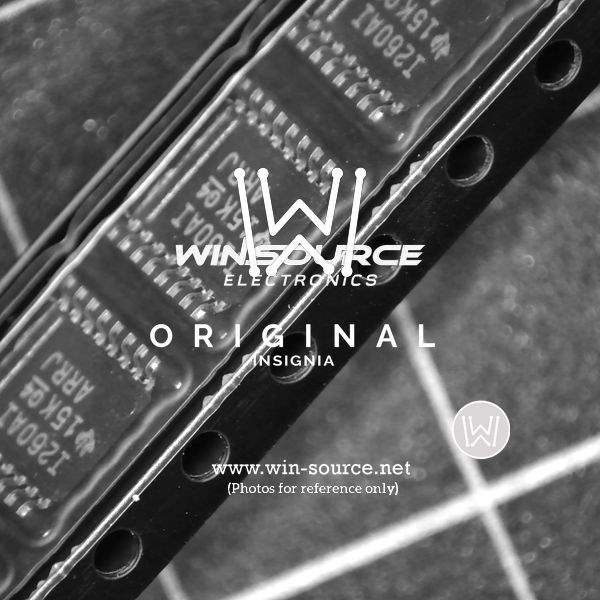

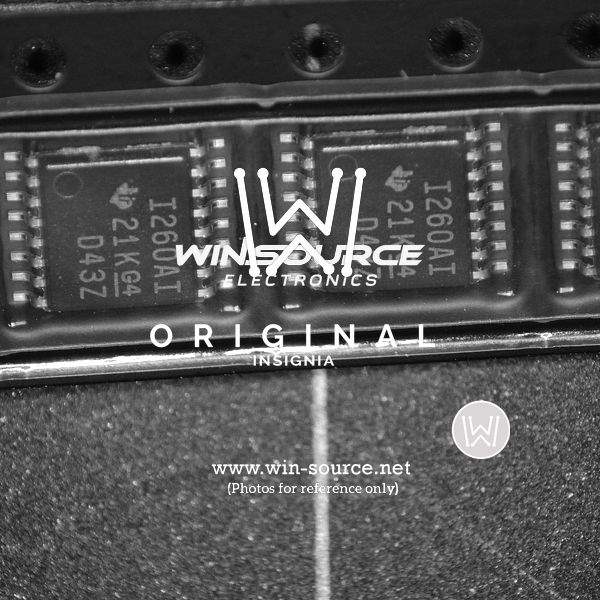

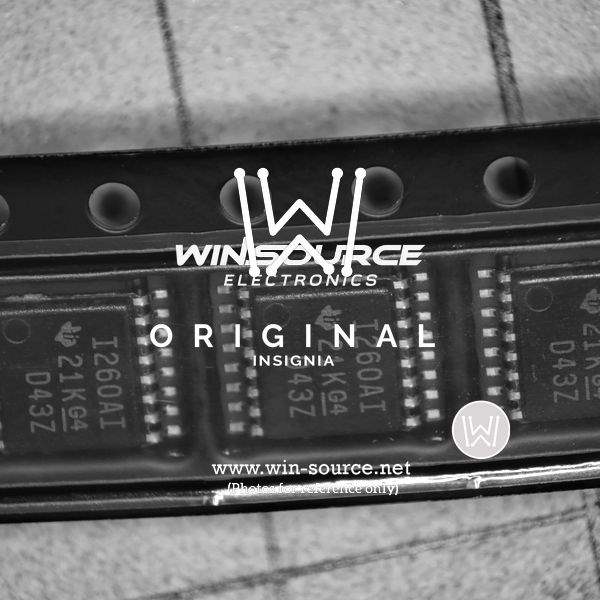

The INA260AIPWR is a state-of-the-art precision power monitor from Texas Instruments, designed to provide high-accuracy current and power measurement capabilities for a wide range of applications. This IC is part of TI's extensive family of industry-leading energy measurement solutions, and it combines two essential functions: a current-sensing amplifier and an analog-to-digital converter (ADC) in a single package.

One of the standout features of the INA260AIPWR is its ability to measure both the current passing through a shunt resistor and the bus voltage, which enables it to calculate power. It boasts an impressive integrated precision shunt resistor, which simplifies the design process by eliminating the need for external components. This not only saves space on the PCB but also ensures high measurement accuracy.

The device is capable of reading currents with a full-scale range of up to 15A and bus voltages up to 36V, with a precision of 1% over the entire temperature range. The INA260AIPWR offers high accuracy with a maximum offset of 10 µV and a gain error of only 0.1%. This makes it ideal for applications that require precise power monitoring, such as battery chargers, power supplies, and energy management systems.

Featuring an I2C-compatible interface, the INA260AIPWR allows for easy communication with microcontrollers and other digital systems. It supports standard, fast, and high-speed I2C modes, providing flexibility for different system requirements. The device also includes a programmable alert function, which can be configured to trigger an interrupt when the power, voltage, or current exceeds a user-defined threshold, thus enabling intelligent power management schemes.

Housed in a small 16-pin TSSOP package, the INA260AIPWR is optimized for space-constrained applications. It operates across a wide temperature range of -40°C to 125°C, making it suitable for industrial and automotive environments where reliability and robustness are critical. With its combination of high accuracy, integrated features, and ease of use, the INA260AIPWR is an excellent choice for designers looking to enhance the power-monitoring capabilities of their systems.
