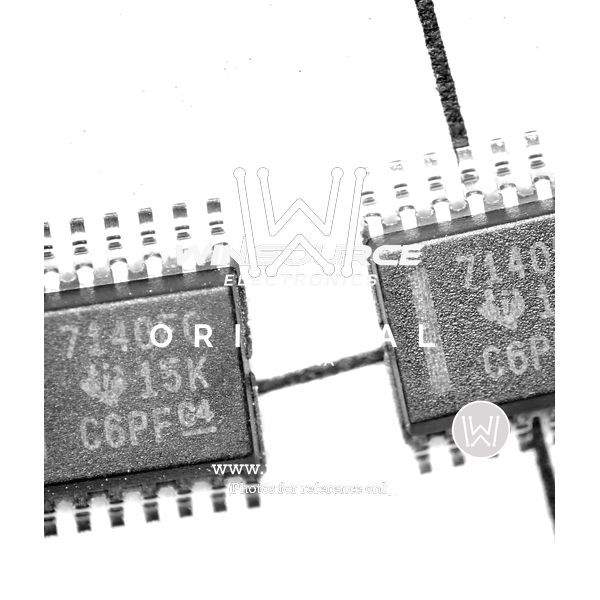

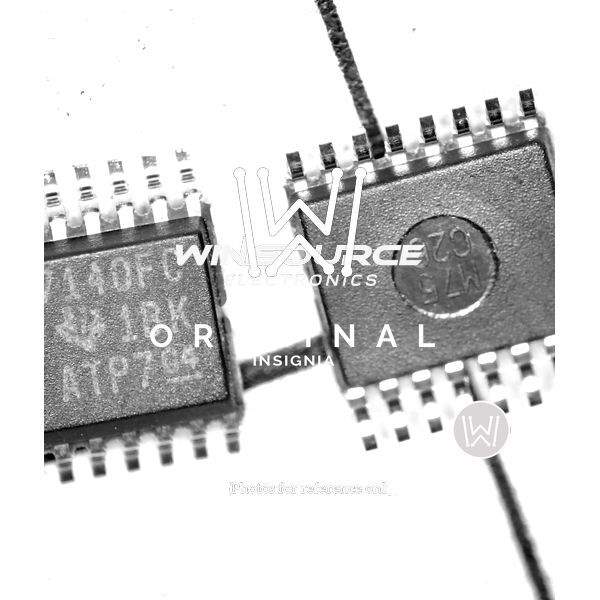

The ISO7140FCCDBQ is a robust, high-performance quad-channel digital isolator manufactured by Texas Instruments (TI). Designed to optimize signal integrity and isolation in challenging industrial and commercial environments, this component is a crucial part of systems that require electrical isolation for safety, noise immunity, and enhanced reliability.

Key Features

• Channel Configuration: The ISO7140FCCDBQ features four independent isolation channels, each capable of transferring data in both directions, making it highly versatile for various communication protocols.
• Isolation Rating: It offers an impressive isolation voltage of 3000 Vrms for 1 minute per UL 1577, providing a high degree of protection against electrical noise and surges.
• High-Speed Operation: With a signaling rate up to 25 Mbps, this isolator supports high-speed data transmission without compromising signal integrity, making it suitable for demanding applications.
• Low Power Consumption: The device is designed for energy efficiency, with a low power consumption that makes it ideal for power-sensitive applications.
• Wide Temperature Range: Operating temperature ranges from -40°C to 125°C, ensuring reliable performance in extreme conditions.
• Robust Packaging: Housed in a compact 16-pin SSOP (Shrink Small Outline Package), the ISO7140FCCDBQ is designed for space-constrained applications.

Applications

The ISO7140FCCDBQ is suitable for a wide range of applications including, but not limited to:

• Industrial automation and control systems
• Medical equipment with stringent safety requirements
• Motor control circuits
• Power supply management
• Data communication systems

Quality and Reliability

Texas Instruments is known for its commitment to quality, and the ISO7140FCCDBQ is no exception. It is built with TI's proprietary silicon dioxide (SiO2) insulation barrier, which provides a high level of reliability and long operational life. This product meets or exceeds industry standards for isolation and is RoHS compliant, reflecting TI's dedication to environmental responsibility.
