The LM109H/NOPB is a high-performance voltage regulator designed and manufactured by Texas Instruments. This robust component is engineered to maintain a steady voltage level and is a crucial part in various electronic circuits. It offers a stable and reliable solution for applications requiring precise voltage control.

Key Features:

• Output Voltage: The LM109H/NOPB provides a fixed output voltage of 5V, which is ideal for logic circuits and standard digital systems.
• Load Regulation: It boasts excellent load regulation characteristics, ensuring the output voltage remains consistent despite changes in the load current.
• Line Regulation: The device also exhibits superior line regulation, maintaining output voltage stability with variations in the input voltage.
• Current Limiting: Integrated current limiting features protect the device and the load from damage due to excessive current.
• Thermal Shutdown: The built-in thermal shutdown mechanism prevents the regulator from overheating, thereby enhancing its reliability and longevity.

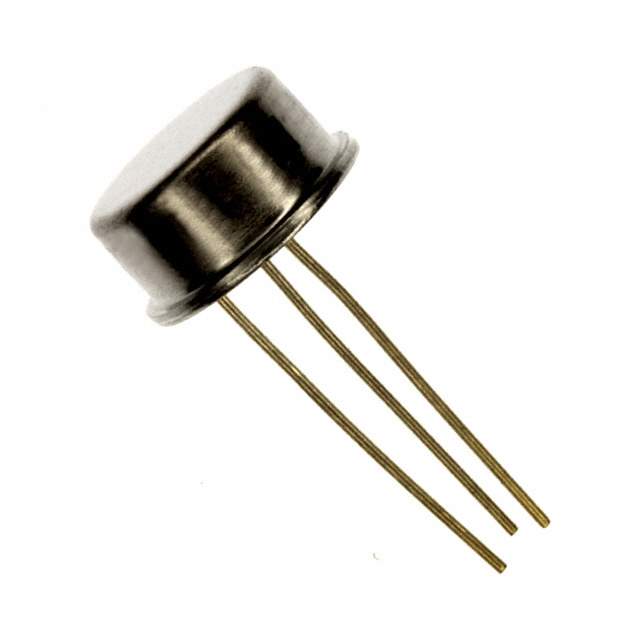

• Package: It is offered in a hermetically sealed metal can package, which ensures its performance in harsh environments and provides excellent thermal properties.

Applications:

• Power supplies for digital systems
• Instrumentation and control systems
• Aerospace and military applications
• High-reliability consumer electronics

Quality and Reliability:

The LM109H/NOPB is designed to meet the stringent requirements of high-reliability environments. Texas Instruments' commitment to quality ensures that this voltage regulator operates effectively under a wide range of temperatures and conditions. The NOPB designation indicates that the product is lead-free, making it suitable for use in "green" electronics and in applications where environmental concerns are paramount.

Summary:

In summary, the LM109H/NOPB from Texas Instruments is a highly reliable fixed voltage regulator with outstanding performance characteristics. Its robust design, combined with thermal protection and current limiting features, makes it an excellent choice for demanding applications that require a stable power supply.
