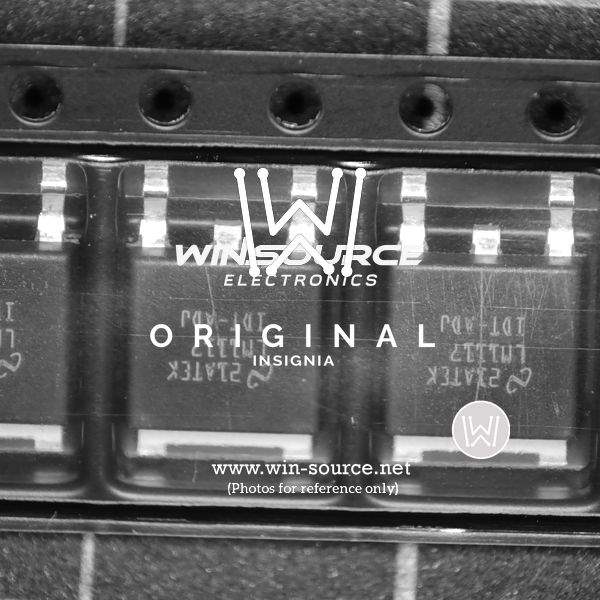

LM1117IDTX-ADJ/NOPB Real Image LM1117IDTX-ADJ/NOPB Real Image1 LM1117IDTX-ADJ/NOPB Real Image2
Same model may have multiple batches, images only for reference.
LM1117IDTX-ADJ/NOPB Real Image LM1117IDTX-ADJ/NOPB Real Image1 LM1117IDTX-ADJ/NOPB Real Image2
LM1117IDTX-ADJ/NOPB Real Image LM1117IDTX-ADJ/NOPB Real Image1 LM1117IDTX-ADJ/NOPB Real Image2
Same model may have multiple batches, images only for reference.

LM1117IDTX-ADJ/NOPB

Part No LM1117IDTX-ADJ/NOPB
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO ADJ 0.8A TO252-3
Datasheet
LM1117IDTX-ADJ/NOPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Output Type Adjustable
Number of Regulators 1
Maximum Input Voltage 15V
Nominal Output Voltage (Min/Fixed) 1.25V
Maximum Output Voltage 13.8V
Dropout Voltage-Max 1.2V @ 800mA
Output Current 800mA
Operating Supply Current 5mA to 10mA
PSRR 75dB (120Hz)
Control Protection Features Over Current, Over Temperature
Temperature Range - Operating -40°C to 125°C
Regulator Topology Positive Adjustable
Output Voltage 1.25 V to 13.8 V
Voltage - Dropout (Typical) 1.2V @ 800mA
Mounting SMD (SMT)
Case / Package TO-252-3
Win Source Part Number 123052-LM1117IDTX-ADJ/NOPB
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LM1117IDTX-ADJ/NOPB CAD Model

Description

The LM1117IDTX-ADJ/NOPB from Texas Instruments is a versatile and reliable adjustable voltage regulator designed to provide optimal performance in a variety of applications.

  • Output Current: Up to 800mA
  • Output Voltage: Adjustable, ranges from 1.25V to 13.8V
  • Output Voltage Accuracy: 1% (typical)
  • Dropout Voltage: Low
  • Operating Temperature Range: -40°C to 125°C
  • Package: TO-252 (surface-mount)
  • Protection: Over-temperature and over-current protection
