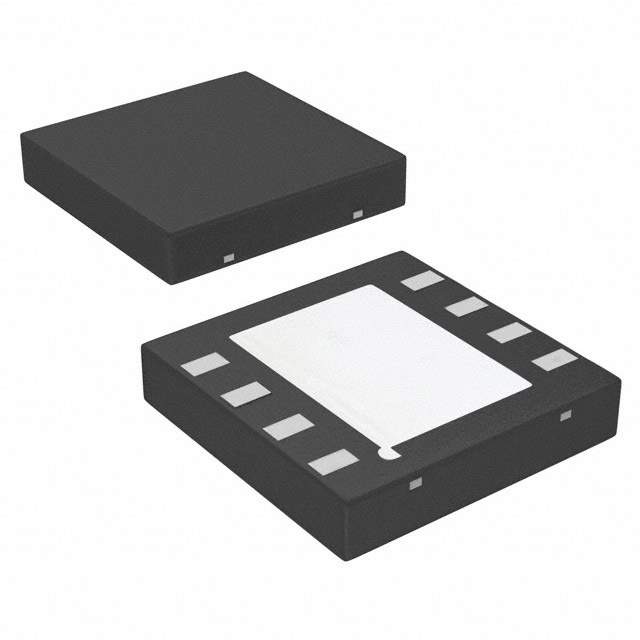

LM1117LDX-3.3 Real Image
Same model may have multiple batches, images only for reference.

LM1117LDX-3.3

Part No LM1117LDX-3.3
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 3.3V 0.8A 8WSON
Datasheet
LM1117LDX-3.3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Obsolete(EOL)
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 15V
Nominal Output Voltage (Min/Fixed) 3.3V
Dropout Voltage-Max 1.2V @ 800mA
Output Current 800mA
Operating Supply Current 5mA to 10mA
PSRR 75dB (120Hz)
Control Protection Features Over Current, Over Temperature
Temperature Range - Operating 0°C to 125°C
Regulator Topology Positive Fixed
Output Voltage 3.3V
Voltage - Dropout (Typical) 1.2V @ 800mA
Mounting SMD (SMT)
Case / Package 8-WSON (4x4)
Win Source Part Number 041063-LM1117LDX-3.3
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LM1117LDX-3.3 CAD Model

Description

The LM1117LDX-3.3 is a versatile voltage regulator from Texas Instruments, a leading global semiconductor company.

  • Output Voltage: 3.3 volts (fixed)
  • Dropout Voltage: 1.2V @ maximum output current
  • Current Capacity: Up to 800 mA
  • Features: Thermal and current limit circuits
  • Package: TO-263
