Product Overview: LM25010Q0MH/NOPB

The LM25010Q0MH/NOPB is a highly efficient, power management integrated circuit designed and manufactured by Texas Instruments (TI). This component is part of TI's extensive line of power conversion and management products, specifically tailored for demanding automotive, industrial, and telecommunication applications where efficiency and reliability are paramount.

Key Features:

• Step-Down Voltage Regulator: The LM25010Q0MH/NOPB is a step-down (buck) voltage regulator, capable of converting a higher input voltage to a lower output voltage with a high degree of efficiency.
• Input Voltage Range: It operates over a wide input voltage range from 4.5V to 42V, making it versatile for various applications and able to handle transient voltage spikes.
• Output Current Capability: The device can deliver up to 1A of continuous output current to the load.
• Adjustable Output Voltage: The output voltage is adjustable and can be set to the desired level using external resistors.
• High Efficiency: With integrated N-Channel MOSFETs and a current-mode control architecture, the LM25010Q0MH/NOPB achieves high efficiency, which is critical for thermal management and energy conservation.
• Frequency Synchronization: The switching frequency is programmable and can be synchronized to an external clock to manage electromagnetic interference (EMI) and optimize performance.
• Thermal Shutdown: Enhanced safety features include thermal shutdown, which protects the device from damage due to excessive heat.
• Automotive Qualified: This device is qualified for automotive applications, meeting the stringent requirements for performance and reliability.

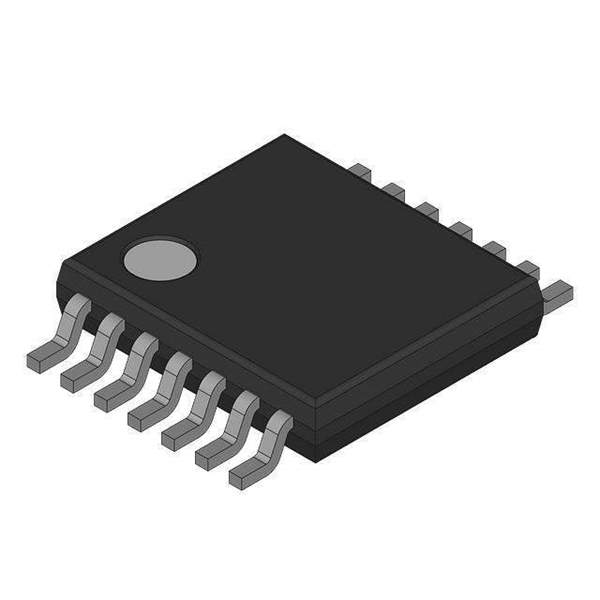

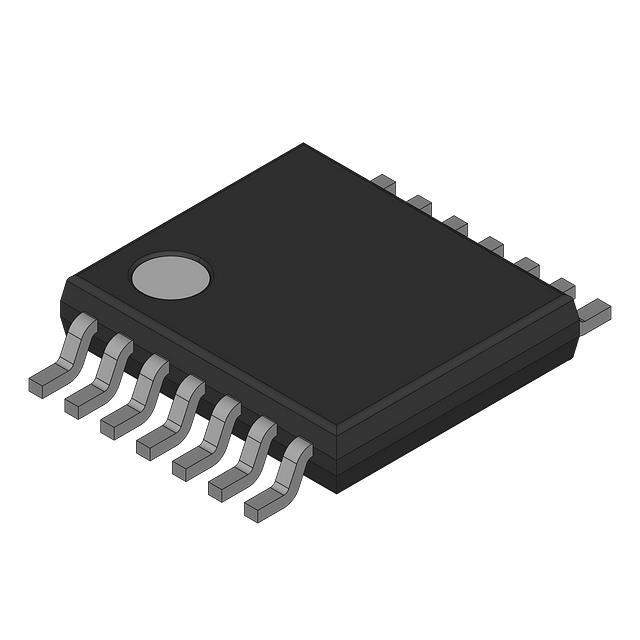

• Package: The LM25010Q0MH/NOPB is offered in a 14-pin TSSOP (Thin Shrink Small Outline Package) with exposed pad for improved thermal dissipation.

Applications:

The LM25010Q0MH/NOPB is suitable for a broad range of applications, including but not limited to:

• Automotive infotainment and telematics
• Industrial control systems
• Point-of-load power supplies
• Telecommunications equipment

In summary, the LM25010Q0MH/NOPB from Texas Instruments is a robust and efficient solution for voltage regulation in systems that require a reliable power supply. Its combination of features, including a wide input voltage range, high efficiency, and thermal protection, make it an ideal choice for designers looking to optimize power consumption and ensure stable operation in their electronic products.
