Overview of Texas Instruments LM2585T-12

The LM2585T-12 from Texas Instruments is a versatile and efficient SIMPLE SWITCHER® 3A step-up voltage regulator. Designed to provide ease of use and minimal external component count, this regulator is an ideal solution for a variety of applications requiring voltage conversion.

Key Features

• Voltage Regulation: The LM2585T-12 provides a fixed output voltage of 12V, which can power a wide range of devices.
• Current Capability: With a 3A output current capacity, it can drive moderate to high-power applications.
• Adjustable Output: Although it provides a fixed 12V output, the regulator allows for an adjustable version via external resistors for various output voltage requirements.
• High Efficiency: This regulator is designed for high efficiency, which reduces the amount of heat generated and improves system reliability.
• Wide Input Voltage Range: The device can accept an input voltage from 4V to 40V, making it flexible for use in a variety of power supply scenarios.
• Frequency Adjustability: The switching frequency can be adjusted up to 200kHz, allowing for flexibility in choosing inductor sizes and optimizing performance.
• Thermal Shutdown and Current Limit: Built-in thermal shutdown and current limit protections safeguard the device and the system from excessive heat and current conditions.

Applications

The LM2585T-12 is suitable for a myriad of applications, including but not limited to:

• Simple high-voltage power supplies
• Efficient pre-regulators for linear regulators
• 12V systems in automotive and industrial settings
• Step-up power conversions in battery-powered devices

Package and Quality

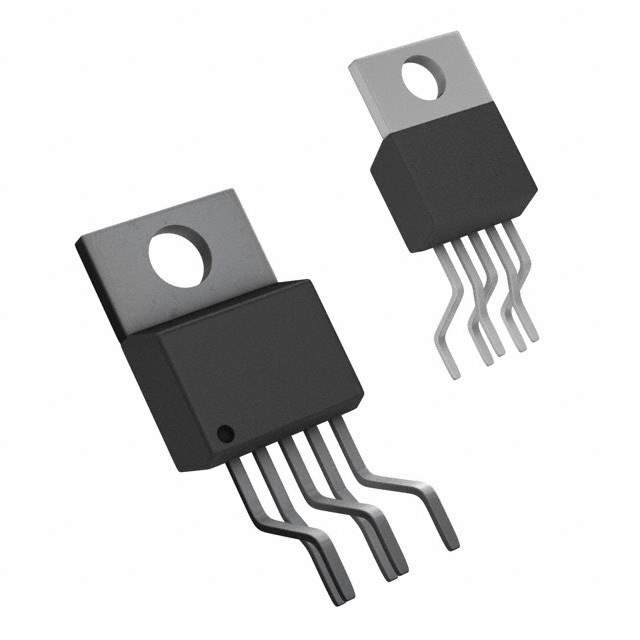

This regulator is available in a TO-220 package, known for its robustness and ease of handling in manufacturing. Texas Instruments' commitment to quality ensures that the LM2585T-12 meets stringent industry standards for performance and reliability.

Whether you are designing a new power system or upgrading an existing one, the LM2585T-12 offers a compact, efficient, and reliable solution that can meet your step-up voltage regulator needs.
