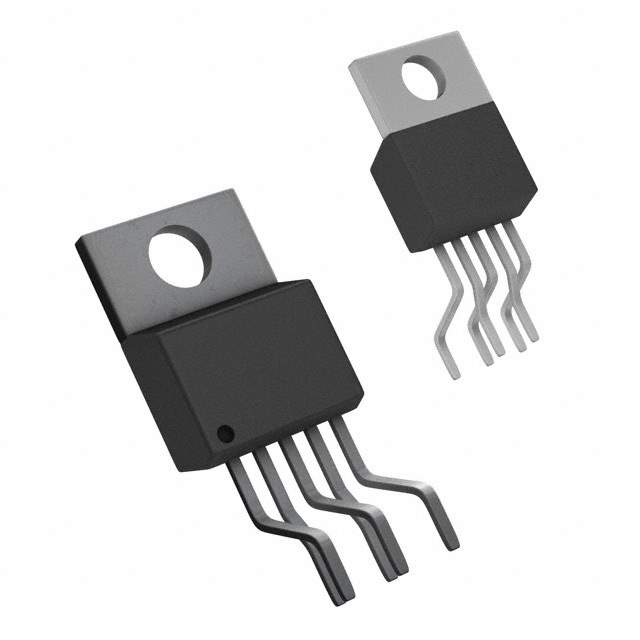

LM2596T-3.3/LF03 Voltage Regulator

The LM2596T-3.3/LF03 from Texas Instruments is a highly efficient, monolithic integrated circuit voltage regulator designed for ease of use and flexibility. This regulator provides all the active functions necessary for a step-down (buck) switching regulator capable of driving a 3A load with excellent line and load regulation.

Key Features

• Output Voltage: Fixed 3.3V output with a high precision of ±4% over line and load conditions.
• Output Current: Capable of delivering up to 3A of continuous output current.
• Efficiency: High conversion efficiency up to 92%, which is maintained over a wide range of load currents.
• Thermal Shutdown and Current Limit: In-built thermal shutdown and current limit features protect the device and the load from damage due to overheating and overcurrent conditions.
• Frequency: Fixed 150 kHz switching frequency allows for smaller component sizes, reducing the overall footprint and cost of the solution.
• Voltage Range: Wide input voltage range from 4.5V to 40V, making it suitable for a variety of applications from simple low-voltage consumer electronics to automotive and industrial systems.
• Cooling: Requires minimal heat sinking, thanks to its high efficiency and TO-220 package which provides a good thermal performance.
• Adjustable Version: An adjustable version is available that allows the output voltage to range from 1.23V to 37V.

Applications

The LM2596T-3.3/LF03 is a versatile component that can be used in a wide array of applications. It is ideal for use in simple low-voltage applications, as well as more complex systems such as:

• Power supplies for battery-operated devices
• Pre-regulator for linear regulators
• On-card switching regulators
• Positive to negative converter (Buck-Boost)

With its robust design and comprehensive feature set, the LM2596T-3.3/LF03 from Texas Instruments stands out as a reliable and cost-effective solution for a wide range of power regulation needs.
