The LM2598S-12 from Texas Instruments is a highly efficient, step-down voltage regulator belonging to the SIMPLE SWITCHER® family of power converters. This integrated circuit is designed to provide a fixed output voltage of 12V with an input voltage range of 4.5V to 40V, making it an excellent choice for a wide array of applications including industrial, automotive, and consumer electronics.

Key Features

• Output Voltage: 12V fixed output with excellent line and load regulation.
• Input Voltage Range: Wide input voltage range from 4.5V to 40V accommodates varying input power sources and transient conditions.
• Current Output: Capable of delivering up to 1.5A of continuous output current.
• High Efficiency: Integrated switch and a minimal number of external components provide up to 77% efficiency.
• Adjustable Switching Frequency: User-adjustable frequency from 150 kHz to 1.5 MHz allows flexibility in choosing inductor size and optimizing efficiency.
• Thermal Shutdown and Current Limit: Built-in thermal shutdown and current limit protections ensure safe operation under abnormal conditions.

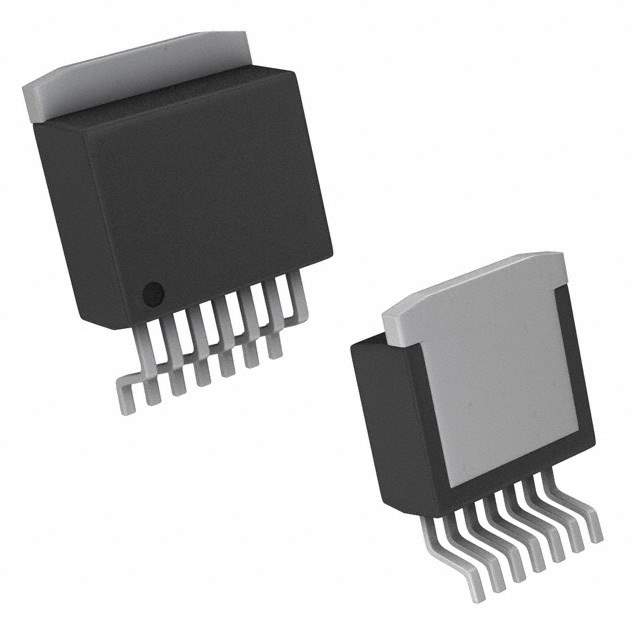

• Package: Available in a compact TO-263 package, suitable for space-constrained applications.

Applications

The LM2598S-12 is versatile and can be used in a variety of applications. It is particularly well-suited for use in:

• Simple high-efficiency step-down (buck) regulators.
• On-card switching regulators.
• Positive to negative converter (Buck-Boost).

Additional Information

The device's robust design includes a fixed frequency oscillator, a precision reference, and an error amplifier to deliver a high level of performance. The LM2598S-12 also features frequency compensation, which is achieved internally without the need for external components, simplifying design and reducing board space. The availability of support and reference designs from Texas Instruments makes integration into existing and new projects straightforward, ensuring a rapid design cycle for product development.

For detailed specifications, application notes, and additional resources, please refer to the official Texas Instruments datasheet for the LM2598S-12 voltage regulator.
