Product Overview: LM2623ALD/NOPB

The LM2623ALD/NOPB is a high-efficiency, general-purpose, step-up DC-DC switching regulator manufactured by Texas Instruments. This compact device is particularly designed for battery-powered and low-input voltage systems, making it an ideal solution for portable electronic devices such as personal digital assistants (PDAs), handheld instruments, and mobile phones.

With its adjustable output voltage range, the LM2623ALD/NOPB can efficiently convert input voltages as low as 1.2V to a selectable output voltage that can extend up to 14V, accommodating a wide array of application requirements. The device operates in a pulse frequency modulation (PFM) mode, which significantly reduces the quiescent current and enhances power efficiency, especially at light load conditions.

One of the key features of the LM2623ALD/NOPB is its ability to start up with a load present. This quality, combined with a shut-down current of less than 0.1µA, ensures minimal power waste and extends battery life in portable applications. Moreover, the chip's internal 0.15-ohm N-Channel MOSFET switch contributes to its high efficiency, as it allows for peak currents up to 2A.

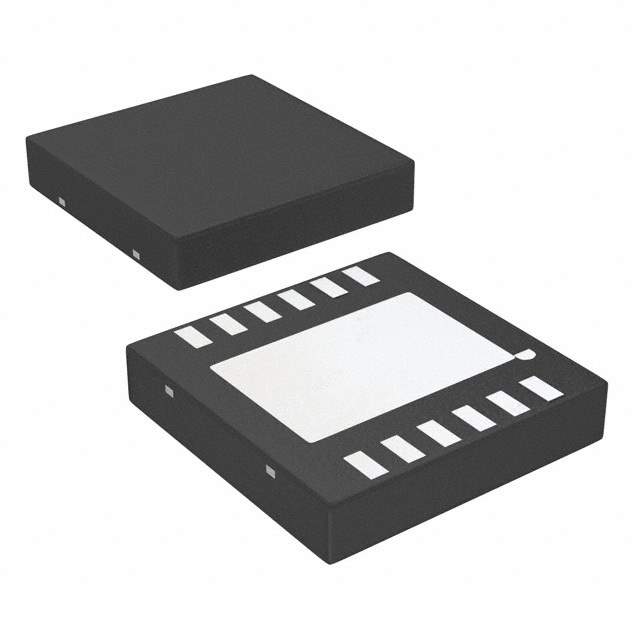

The LM2623ALD/NOPB is housed in a low-profile, 8-pin WSON package, which is optimized for space-constrained applications. Its thermal performance is also commendable, making it a reliable choice for systems where heat dissipation is a concern.

For circuit protection, the device includes current limiting and thermal shutdown features, safeguarding the system against abnormal operating conditions. Additionally, the LM2623ALD/NOPB is RoHS compliant and lead-free, reflecting Texas Instruments' commitment to environmental sustainability.

Overall, the LM2623ALD/NOPB is a versatile, efficient, and reliable step-up regulator that meets the demands of modern portable electronics. Its small footprint, combined with high performance and power-saving characteristics, makes it a top choice for designers looking to optimize their power management solutions.
