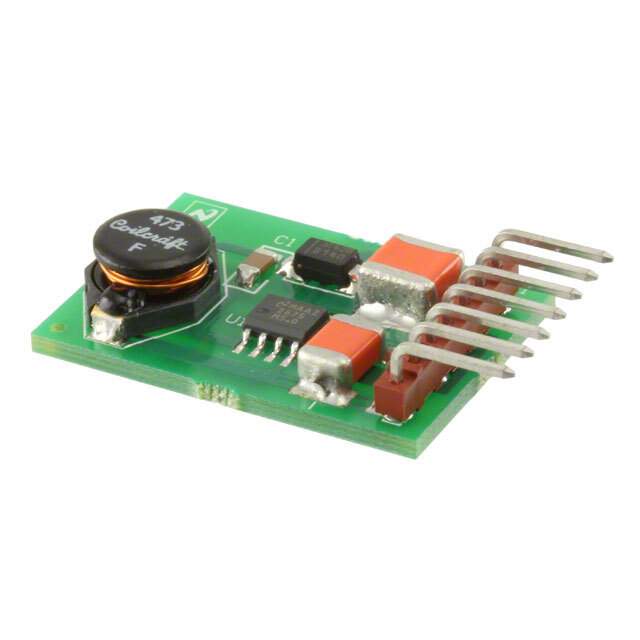

The LM2675-5.0EVAL from Texas Instruments is a comprehensive evaluation platform designed for the LM2675 series of SIMPLE SWITCHER® 5V, 1A Step-Down Voltage Regulator. This evaluation board enables designers and engineers to rapidly prototype and test the features and capabilities of the LM2675 regulator, which is well-suited for a variety of applications, including industrial, automotive, and consumer electronics.

Key Features

• Regulator Specifications: The board comes equipped with the LM2675-5.0, a high-efficiency regulator that provides a fixed output voltage of 5V with a maximum output current of 1A.
• Efficiency: The LM2675-5.0EVAL showcases the high efficiency of the regulator, which is capable of delivering up to 92% efficiency under certain conditions.
• Adjustable Output: While the board is set for a 5V output, the LM2675 regulator can be adjusted to provide different output voltages with the appropriate external components.
• Thermal Management: The evaluation board is designed with thermal considerations in mind, featuring a layout that optimizes heat dissipation for the regulator.
• Protection Features: The LM2675-5.0EVAL includes built-in features such as over-temperature protection, current limit, and thermal shutdown to ensure safe operation under various conditions.

Applications

The versatility of the LM2675-5.0EVAL makes it an ideal solution for developing power supplies in multiple applications:

• Power conditioning for sensitive electronics
• Automotive accessories and infotainment systems
• Industrial control systems
• Portable and battery-powered devices
• Telecommunication equipment

Design Support

Texas Instruments provides extensive design support for the LM2675-5.0EVAL, including detailed datasheets, application notes, and design simulation tools. This ensures that engineers can fully utilize the capabilities of the evaluation board and integrate the LM2675 regulator into their designs with confidence.
