High-Frequency 1A Load Step-Down DC/DC Regulator

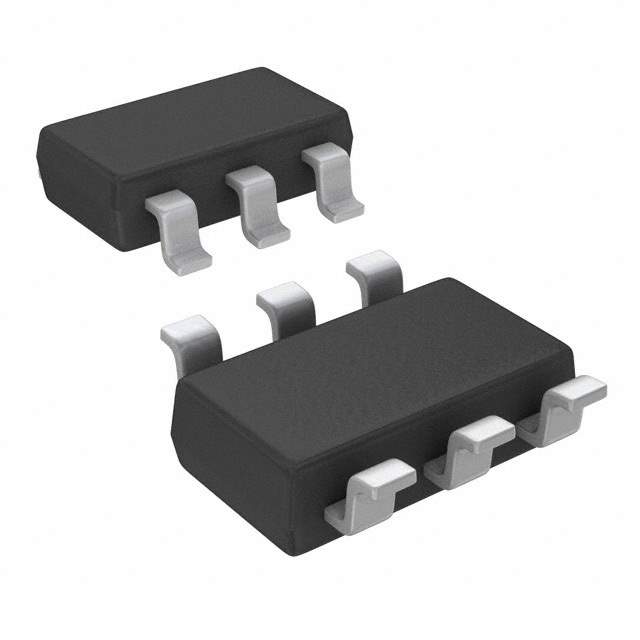

The LM2734XQMKE/NOPB from Texas Instruments is a compact, high-efficiency, step-down DC/DC converter designed for a variety of applications. This regulator is capable of driving a 1A load with excellent line and load regulation. The device is housed in a space-saving 6-pin SOT-23 package, making it an ideal choice for space-constrained applications.

Key Features:

• Versatile Input Voltage: The LM2734XQMKE/NOPB operates over a wide input voltage range from 2.7V to 5.5V, accommodating various power sources and battery technologies.
• High-Efficiency Output: With an adjustable output voltage as low as 0.8V, the device ensures efficient power conversion, which is critical for extending battery life in portable devices.
• Switching Frequency: A high switching frequency of up to 3MHz allows for the use of small surface-mount inductors and capacitors, reducing the overall footprint and component cost.
• Thermal Performance: Enhanced thermal performance is achieved through the use of a proprietary inductorless DSBGA package that significantly reduces thermal resistance.
• Protection Features: The regulator includes built-in features such as current limiting, thermal shutdown, and undervoltage lockout, ensuring reliable operation under adverse conditions.

Applications:

The LM2734XQMKE/NOPB is suitable for a wide range of applications, including but not limited to:

• Portable and battery-powered equipment
• Wireless and DSL modems
• Point-of-load conversions from a 3.3V or 5V rail
• Networking cards and modules
• Green electronics and energy-sensitive applications

Quality and Reliability:

Texas Instruments is known for its commitment to quality, and the LM2734XQMKE/NOPB is no exception. It is RoHS-compliant and lead-free, reflecting TI's dedication to environmental sustainability. With its reliable performance and Texas Instruments' support, this step-down regulator is an excellent choice for designers looking for a power management solution that combines efficiency with a small form factor.
