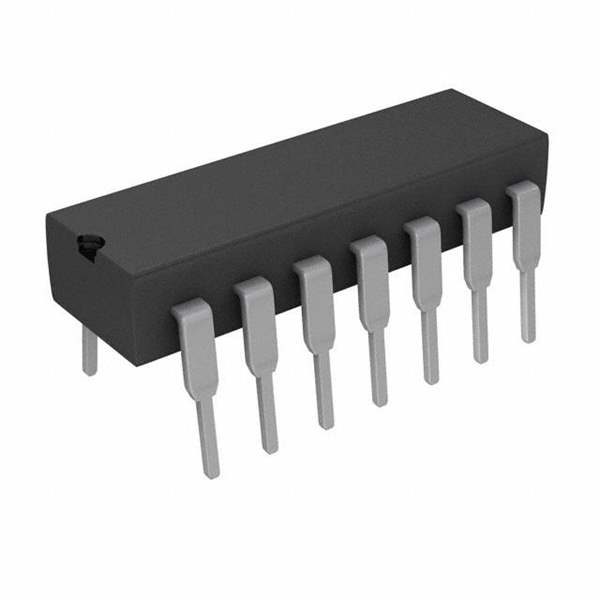

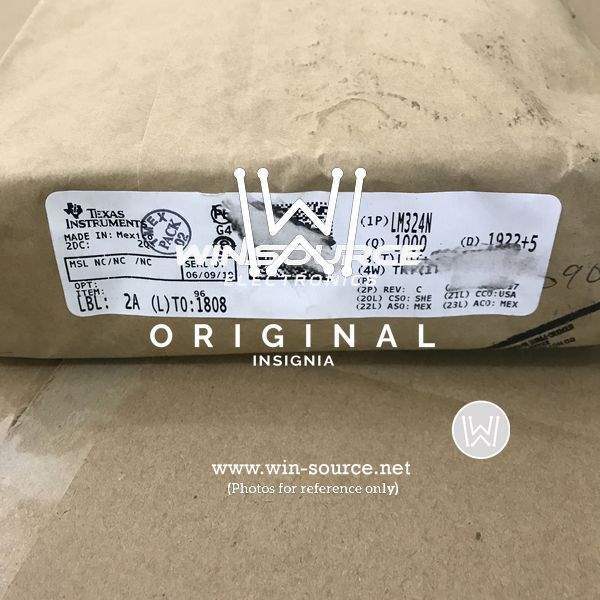

LM324N/NOPB Texas Instruments LM324N/NOPB Real Image LM324N/NOPB label picture
Same model may have multiple batches, images only for reference.
LM324N/NOPB Texas Instruments LM324N/NOPB Real Image LM324N/NOPB label picture
LM324N/NOPB Texas Instruments LM324N/NOPB Real Image LM324N/NOPB label picture
Same model may have multiple batches, images only for reference.

LM324N/NOPB

Part No LM324N/NOPB
Manufacturer Texas Instruments
Catalog Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description IC OPAMP GP 1.2MHZ 14DIP
Datasheet
LM324N/NOPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Tube/Rail
Status Active
Amplifier Type General Purpose
Number of Circuits 4
Slew Rate 0.5 V/μs
Gain Bandwidth Product (GBP) 1MHz
Current - Input Bias 45nA
Voltage - Input Offset 2mV
Operating Supply Current 1.5mA
Channel Output Current 40mA
Supply Voltage - Operating 3 V to 32 V, ±1.5 V to 16 V
Temperature Range - Operating 0°C to 70°C
Mounting Through Hole
Case / Package 14-PDIP
Win Source Part Number 071214-LM324N/NOPB
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LM324N/NOPB CAD Model

Description

The Texas Instruments LM324N/NOPB is a high-performance, quad operational amplifier with true differential inputs.

  • Amplifiers: four independent, high-gain, internally frequency-compensated operational amplifiers
  • Voltage range: 3 volts to 32 volts
  • Absolute Maximum Voltage: 32 volts
  • Feature: low input bias and offset parameters
  • Feature: large output voltage swing
  • Feature: low power consumption
  • Feature: short-circuit protection
  • Package: 14-pin PDIP package
  • Compliance: RoHS compliant
