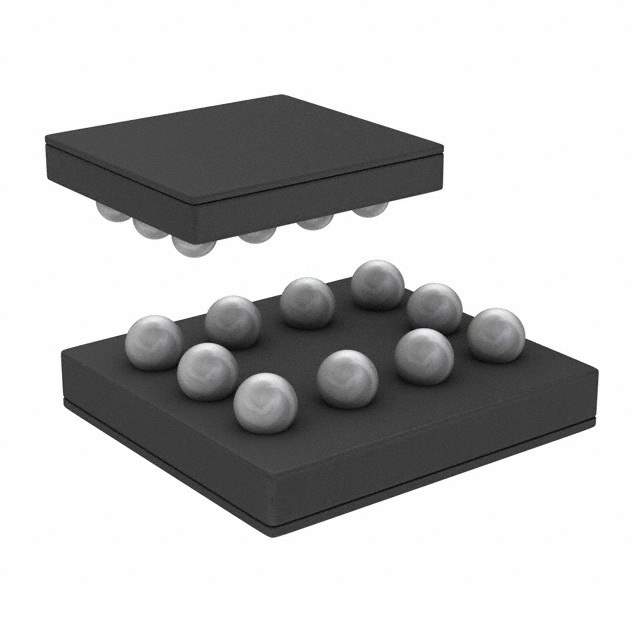

LM3503ITLX-25 Real Image
Same model may have multiple batches, images only for reference.

LM3503ITLX-25

Part No LM3503ITLX-25
Manufacturer Texas Instruments
Catalog PMIC - LED Drivers
Description IC LED DRIVER RGLTR DIM 10DSBGA
Datasheet
LM3503ITLX-25 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Obsolete(EOL)
Type DC DC Regulator
Topology Step-Up (Boost)
Internal Switch(s) Yes
Number of Outputs 2
Operating Input Voltage(Min) 2.5V
Maximum Supply Voltage 5.5V
Output Voltage 25V
Channel Output Current 600mA (Switch)
Frequency 1MHz
Dimming Analog, PWM
Applications Backlight
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 10-DSBGA
Win Source Part Number 071258-LM3503ITLX-25
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LM3503ITLX-25 CAD Model

Description

The LM3503ITLX-25 is an innovative product from the globally renowned tech company, Texas Instruments.

  • Type: High-efficiency, switch-mode backlight LED driver
  • LED Brightness Control: 32-level logarithmic scale
  • Input Voltage Range: 2.7V to 5.5V
