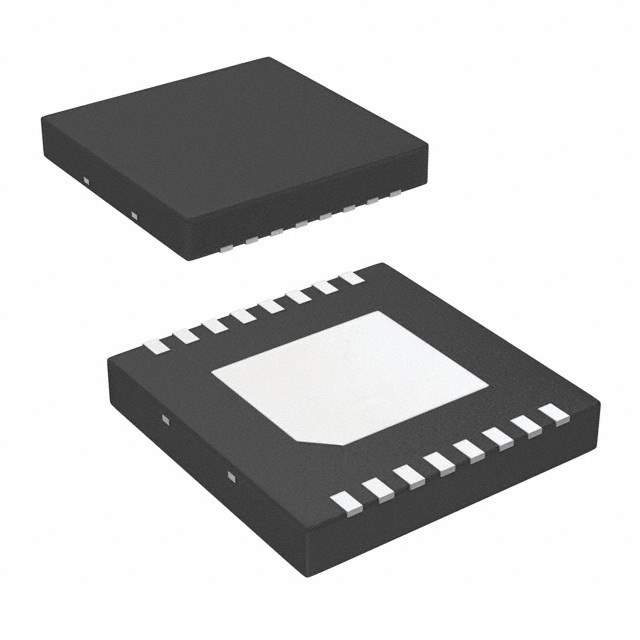

LM5000SD-3/NOPB Real Image
Same model may have multiple batches, images only for reference.

LM5000SD-3/NOPB

Part No LM5000SD-3/NOPB
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - DC DC Switching Regulators
Description Conv DC-DC 3.1V to 40V Step Up Single-Out 1.295V to 75V 16-Pin WSON EP T/R / IC REG MULT CONFIG ADJ 16WSON
Datasheet
LM5000SD-3/NOPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Purpose Step-Up, Step-Up/Step-Down
Topology Boost, Flyback, Forward Converter
Output Type Adjustable
Number of Outputs 1
Minimum Input Voltage 3.1V
Maximum Input Voltage 40V
Nominal Output Voltage (Min/Fixed) 3.1V
Maximum Output Voltage 80V (Switch)
Output Current 1.35A (Switch)
Frequency - Switching 300kHz, 700kHz
Synchronous Rectifier No
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package 16-WSON (5x5)
Win Source Part Number 135987-LM5000SD-3/NOPB
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name LM5000SD
Introduction Date July 01, 2003
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian LM5000SD-3/NOPB CAD Model

Description

The LM5000SD-3/NOPB is a high-performance product from Texas Instruments, a renowned global semiconductor design and manufacturing company.

  • Manufacturer: Texas Instruments
  • Product Type: High Voltage Load Switch
  • Voltage: 6V to 36V
  • RON: 55mΩ
  • Current Limit: Adjustable
  • Protection: Thermal shutdown and short circuit protection
  • Package: 6-pin WSON
  • Operating Temperature Range: -40°C to 125°C
  • RoHS Compliant: Yes
  • Lead-Free: Yes
