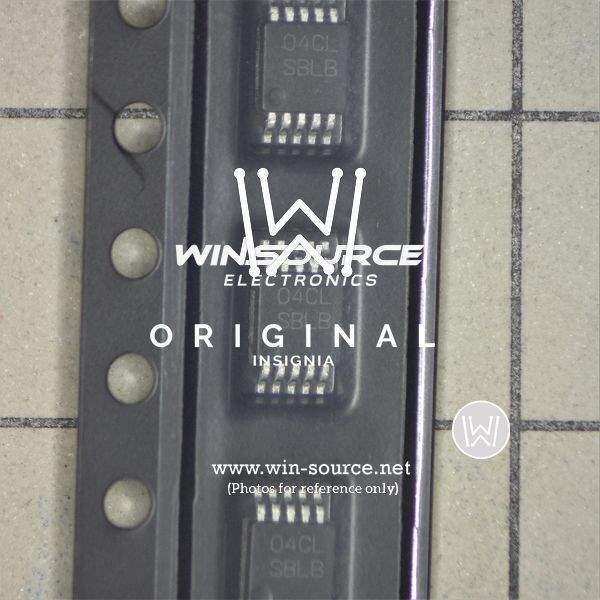

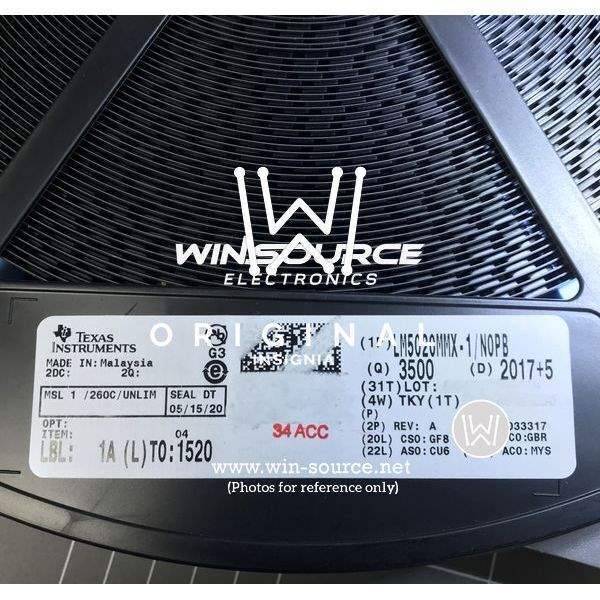

LM5020MMX-1/NOPB Real Image LM5020MMX-1/NOPB real image LM5020MMX-1/NOPB label picture LM5020MMX-1/NOPB Real Image
Same model may have multiple batches, images only for reference.

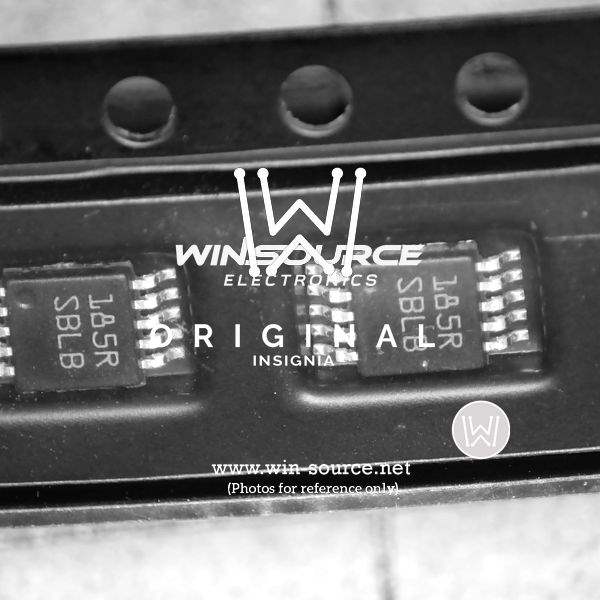

LM5020MMX-1/NOPB Real Image LM5020MMX-1/NOPB real image LM5020MMX-1/NOPB label picture LM5020MMX-1/NOPB Real Image
LM5020MMX-1/NOPB Real Image LM5020MMX-1/NOPB real image LM5020MMX-1/NOPB label picture LM5020MMX-1/NOPB Real Image
Same model may have multiple batches, images only for reference.

LM5020MMX-1/NOPB

Part No LM5020MMX-1/NOPB
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - DC DC Switching Controllers
Description IC REG CTRLR FLYBACK 10MSOP
Datasheet
LM5020MMX-1/NOPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Output Type Transistor Driver
Purpose Step-Up/Step-Down
Topology Flyback
Number of Outputs 1
Output Phases 1
Supply Voltage - Operating 8 V to 15 V
Frequency - Switching 200kHz to 630kHz
Duty Cycle (Max) 80%
Synchronous Rectifier No
Clock Sync Yes
Control Features Frequency Control, Soft Start
Temperature Range - Operating -40°C to 125°C (TJ)
Case / Package 10-VSSOP
Win Source Part Number 019364-LM5020MMX-1/NOPB
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LM5020MMX-1/NOPB CAD Model

Description

The LM5020MMX-1/NOPB is a high performance, high voltage pulse width modulation (PWM) controller from Texas Instruments.

  • Input Voltage Range: 13V to 100V
  • Package: 10-pin MSOP PowerPAD
