Product Overview: LM5116WG/NOPB from Texas Instruments

The LM5116WG/NOPB is a synchronous buck controller designed by Texas Instruments, renowned for its precision and efficiency in power management applications. This integrated circuit is specifically engineered to cater to a wide range of voltage inputs while delivering a regulated output with high accuracy. It is an ideal choice for converting high voltage to lower voltage with high efficiency, making it suitable for various electronic devices and industrial applications.

Key Features

• Wide Input Range: The LM5116WG/NOPB operates with an input voltage range from 4.5V to 75V, accommodating a broad spectrum of power sources.
• Adjustable Output: Users can set the output voltage from 1.215V to 80% of Vin, providing flexibility for different load requirements.
• High Efficiency: The device employs a synchronous rectification scheme, which significantly enhances efficiency, especially at high input voltages.
• Programmable Switching Frequency: The switching frequency can be programmed between 50 kHz and 750 kHz or synchronized to an external clock, offering design versatility.
• Robust Protection Features: It includes features such as thermal shutdown, overvoltage protection, and an adjustable current limit, ensuring reliable operation under various conditions.

Applications

The LM5116WG/NOPB is adept at managing power in a multitude of applications. It is commonly used in:

• Telecommunications equipment
• Automotive systems
• Industrial power supplies
• Networking and server systems
• Power conditioning for renewable energy systems

Quality and Reliability

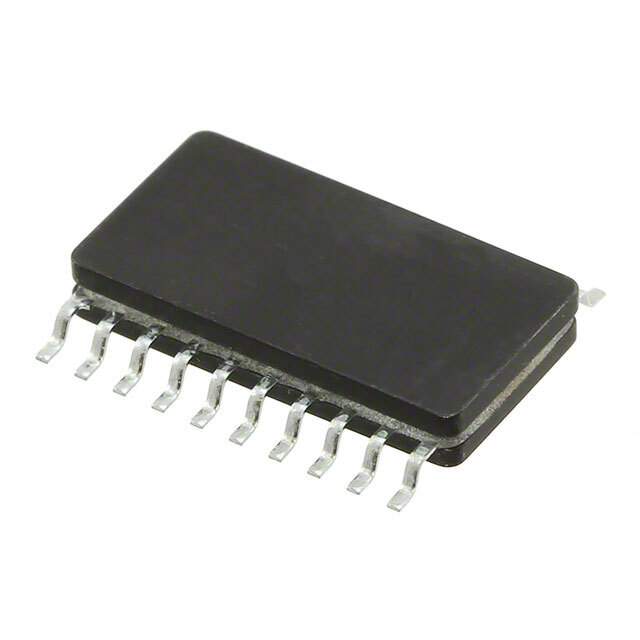

Texas Instruments is committed to delivering high-quality products. The LM5116WG/NOPB is no exception, as it is designed to meet stringent industry standards. It is available in a thermally enhanced 20-pin HTSSOP package, which aids in heat dissipation and ensures stable performance over a wide temperature range. This product is also lead-free and RoHS compliant, reflecting Texas Instruments' dedication to environmental sustainability.

With its robust feature set and flexible design options, the LM5116WG/NOPB from Texas Instruments stands out as a versatile and efficient solution for advanced power management.
