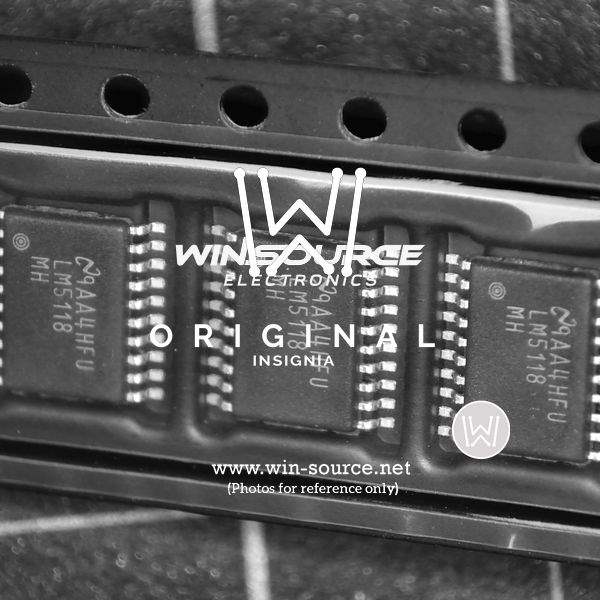

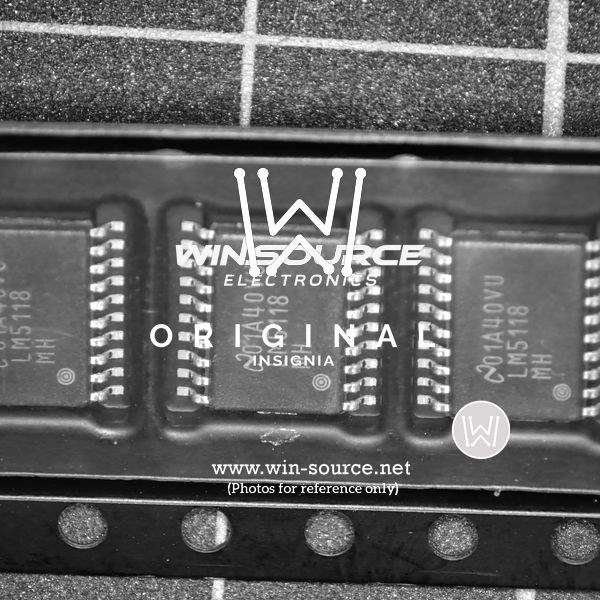

LM5118MHX/NOPB Texas Instruments LM5118MHX/NOPB Real Image LM5118MHX/NOPB label picture LM5118MHX/NOPB Real Image1 LM5118MHX/NOPB Real Image2
LM5118MHX/NOPB Texas Instruments LM5118MHX/NOPB Real Image LM5118MHX/NOPB label picture LM5118MHX/NOPB Real Image1 LM5118MHX/NOPB Real Image2
Same model may have multiple batches, images only for reference.

LM5118MHX/NOPB

Part No LM5118MHX/NOPB
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - DC DC Switching Controllers
Description IC REG CTRLR BCK/BCK-BST 20TSSOP
Datasheet
LM5118MHX/NOPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Output Type Transistor Driver
Purpose Step-Down, Step-Up/Step-Down
Topology Buck, Buck-Boost
Number of Outputs 1
Output Phases 1
Supply Voltage - Operating 3 V to 75 V
Frequency - Switching 200kHz, 515kHz
Duty Cycle (Max) 80%
Synchronous Rectifier No
Clock Sync Yes
Control Features Enable, Frequency Control, Ramp, Soft Start
Temperature Range - Operating -40°C to 125°C (TJ)
Case / Package 20-HTSSOP
Win Source Part Number 019397-LM5118MHX/NOPB
Family Name LM5118
Introduction Date April 30, 2008
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2028
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LM5118MHX/NOPB CAD Model

Description

The LM5118MHX/NOPB is a versatile and high-performing product from the globally recognized technology company, Texas Instruments.

  • Device Type: Wide voltage range Buck-Boost switching regulator controller
  • Input Voltage Range: 5.5V to 75V
  • Operation: Regulate output voltages below, equal to, or above the input voltage
  • Transition: Seamless transition between step-down and step-up operation modes
  • Protection Features: Cycle-by-cycle current limit, thermal shutdown, and remote shutdown capability
  • Adjustability: Adjustable output voltage, frequency and soft-start time
  • Package: 20-pin TSSOP
