The LM536015QDSXRQ1 is a highly efficient, automotive-grade buck converter designed and manufactured by Texas Instruments (TI). This power management integrated circuit (PMIC) is specifically engineered to meet the stringent requirements of the automotive industry, providing reliable and robust performance for a wide range of applications.

Key Features

• Input Voltage Range: The device operates from an input voltage range of 3.5 V to 36 V, making it suitable for handling various automotive battery conditions, including cold-crank and stop-start scenarios.
• Output Current: It is capable of delivering up to 1.5 A of continuous output current, ensuring sufficient power for demanding automotive subsystems.
• High Efficiency: The converter boasts high efficiency, which minimizes power loss and heat generation, contributing to the overall reliability and longevity of the system.
• Adjustable Frequency: With an adjustable switching frequency ranging from 200 kHz to 2.2 MHz, designers can optimize the converter for size or efficiency by selecting the appropriate external components.
• Thermal Performance: The device is designed with thermal shutdown protection to safeguard against overheating, ensuring stable operation under varying load conditions.
• Protection Features: It includes a suite of protection features such as under-voltage lockout, over-current protection, and short-circuit protection, enhancing the safety and durability of the application.
• Qualified for Automotive Applications: As a Q1 device, it meets the rigorous AEC-Q100 qualification standards, making it ideal for use in automotive environments.

Applications

The LM536015QDSXRQ1 is designed to be versatile, catering to a diverse array of automotive applications including infotainment systems, advanced driver assistance systems (ADAS), body control modules, and other automotive power rails requiring a stable and efficient voltage supply.

Package and Availability

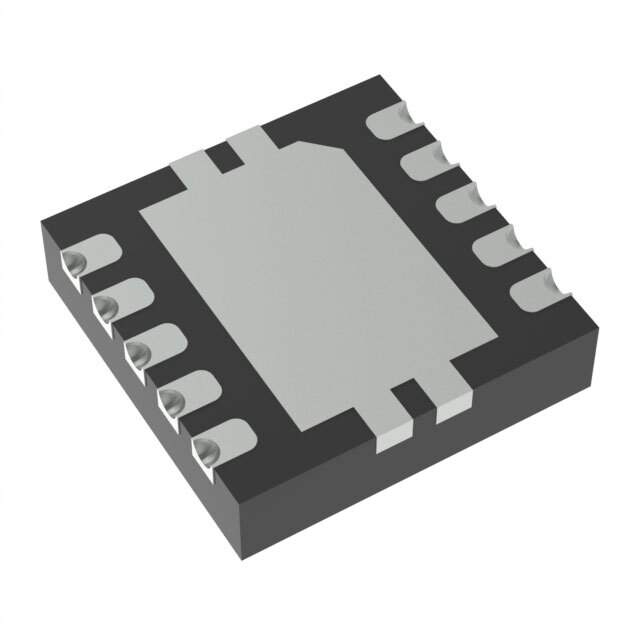

Offered in a compact and thermally enhanced package, the LM536015QDSXRQ1 is available in a small outline integrated circuit (SOIC) package, which is suitable for space-constrained applications. TI provides comprehensive support with design tools, simulation models, and detailed documentation to facilitate easy integration into automotive designs.
