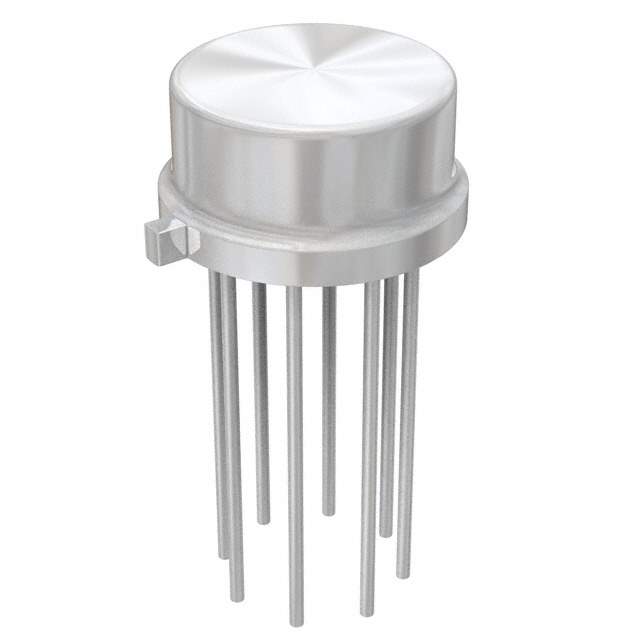

The LM747H from Texas Instruments is a versatile dual operational amplifier, renowned for its high-performance characteristics and reliability. Designed to meet a wide array of requirements, the LM747H is an essential component in applications ranging from precision analog circuits to high-speed signal conditioning and processing.

Key Features

• High-Voltage Operation: With a wide operating voltage range, the LM747H is suitable for systems that require higher voltage levels, providing greater flexibility in circuit design.
• Dual Amplifier Configuration: The dual op-amp design allows for compact circuit layouts, saving space and reducing component count while offering the ability to implement two independent amplifier circuits within a single package.
• Low Offset Voltage: The device features low input offset voltage, which minimizes errors in precision applications and ensures accurate signal amplification.
• High Input Impedance: The high input impedance minimizes loading on the preceding stage, making it an ideal choice for buffering and impedance matching applications.
• Short-Circuit Protection: Built-in short-circuit protection enhances the durability of the LM747H, safeguarding it against potential damage from circuit faults.
• Wide Common-Mode and Differential Voltage Ranges: This operational amplifier can handle a broad range of input signals, accommodating various types of analog inputs.

Applications

The LM747H is well-suited for a multitude of applications including:

• Audio processing equipment
• Data acquisition systems
• Analog filters
• Voltage regulators and power supply circuits
• Instrumentation and measurement devices
• Active filters and oscillators

Product Specifications

For detailed specifications, application notes, and additional resources, please refer to the official Texas Instruments datasheet for the LM747H operational amplifier.
