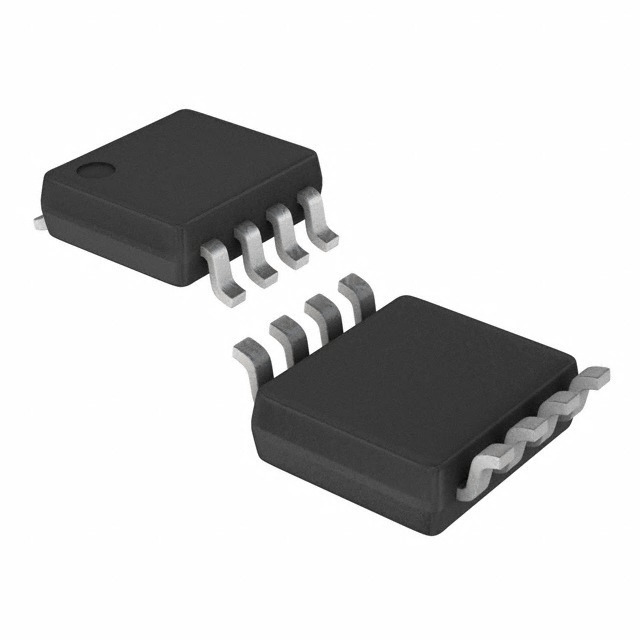

LM90CIMM

Part No LM90CIMM
Manufacturer Texas Instruments
Catalog Temperature Sensors - Analog and Digital Output
Description 3 Degree Celcious Accurate, Remote Diode and Local Digital Temperature Sensor with Two-Wire Interface | SENSOR DIGITAL 0C-85C 8VSSOP
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Texas Instruments
Packaging Tape and Reel
Status Obsolete
Sensor Type Digital, Local/Remote
Sensing Temperature - Local 0°C ~ 85°C
Sensing Temperature - Remote 0°C ~ 85°C
Output Type SMBus
Supply Voltage (V) 3V ~ 3.6V
Resolution 7 b (Local), 10 b (Remote)
Features One-Shot, Output Switch, Programmable Limit, Shutdown Mode, Standby Mode
Accuracy - Highest (Lowest) ±4°C
Test Condition 25°C ~ 125°C
Temperature Range - Operating 0°C ~ 125°C
Mounting Style SMD
Manufacturer Package 8-TSSOP, 8-MSOP
Supplier Device Package 8-VSSOP
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Win Source Part Number 1200928-LM90CIMM
Manufacturer Homepage www.national.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LM90CIMM CAD Model

Description

The LM90CIMM is a precision integrated-circuit temperature sensor that offers an excellent solution for thermal management within electronic systems. Manufactured by Texas Instruments, a leader in semiconductor design and production, this device is designed to accurately monitor the temperature of both its environment and the integrated circuit itself.

Key Features

  • Dual Temperature Sensing: The LM90CIMM can measure the temperature of the die as well as an external diode, such as a CPU or GPU, providing comprehensive thermal data.
  • High Accuracy: It delivers outstanding temperature measurement accuracy of ±3°C for the on-die sensor and ±3°C for the external diode sensor, ensuring precise thermal monitoring.
  • Wide Operating Range: The device operates over a temperature range of -40°C to +125°C, making it versatile for various applications and environments.
  • SMBus Interface: Communication is facilitated through the SMBus (System Management Bus), which allows for easy integration into existing system architectures.
  • Programmable Alert Function: The LM90CIMM features a programmable alert output that can trigger a system response when a preset temperature threshold is exceeded, enhancing system protection.

Applications

The LM90CIMM is ideal for a broad range of applications where temperature monitoring and control are critical. Common uses include:

  • Personal computers and servers
  • Electronic test equipment
  • Office electronics
  • Telecommunications systems

Package and Availability

The LM90CIMM is offered in an 8-pin VSSOP (Very Small Shrink Outline Package) that is both space-efficient and suitable for automated assembly processes. This package ensures that the sensor can be easily incorporated into a wide variety of product designs without significant spatial constraints.

As a Texas Instruments product, the LM90CIMM benefits from the company's commitment to quality and reliability. It is available through various distributors and directly from Texas Instruments, ensuring that designers and manufacturers can access this high-quality temperature sensor for their thermal management needs.
