The LMH0044SQE from Texas Instruments is a high-performance, adaptive reclocker designed for use with high-definition (HD) and standard-definition (SD) serial digital interface (SDI) signals. This advanced integrated circuit is ideal for broadcast video applications, professional video equipment, and video surveillance systems, providing signal conditioning and jitter reduction to maintain signal integrity over long cable runs or through multiple devices.

Key Features

• Signal Support: The LMH0044SQE supports a wide range of video formats, including SMPTE 259M, SMPTE 292M, and SMPTE 424M, making it versatile for both HD and SD applications.
• Automatic Rate Detection: It automatically detects the input data rate, which can range from 143 Mbps to 2.97 Gbps, eliminating the need for manual adjustments and simplifying system design.
• Jitter Cleaning: The device includes an integrated cable equalizer and reclocker, which work together to reduce jitter and compensate for signal loss, ensuring high-quality signal transmission.
• Low Power Consumption: Designed with power efficiency in mind, the LMH0044SQE operates with low power consumption, making it suitable for power-sensitive applications.
• Reliability: Texas Instruments' commitment to quality ensures that the LMH0044SQE meets high reliability standards, suitable for professional and industrial environments.

Applications

• Professional Video Cameras and Recorders
• Video Switchers and Routers
• Video Editing and Post-Production Equipment
• Broadcast Video Servers
• Digital Signage and Video Walls

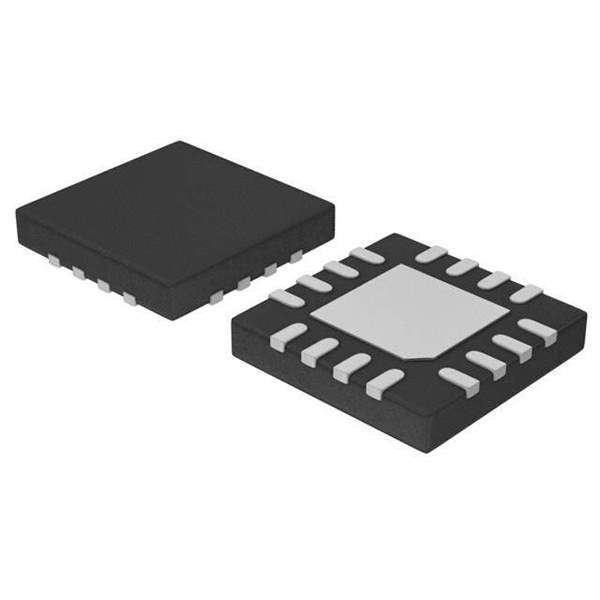

The LMH0044SQE is offered in a surface-mount package, which allows for compact and flexible design options. Its ability to operate over a wide temperature range ensures performance in diverse operating conditions. With the LMH0044SQE, Texas Instruments provides a robust solution for maintaining signal quality in a variety of high-speed video applications.
