The LMH0394SQX/NOPB is a state-of-the-art high-definition digital video cable driver designed and manufactured by Texas Instruments. This powerful and versatile integrated circuit is specifically engineered to drive serial digital video data through 75-ohm coaxial cables commonly used in professional video and broadcast industries.

Key Features

• SDI Compliance: The LMH0394SQX/NOPB fully supports SMPTE 259M, SMPTE 292M, SMPTE 424M, and SMPTE 297M standards for SD, HD, and 3G-SDI, making it a flexible solution for various video formats.
• Adaptive Cable Equalization: It includes an adaptive cable equalizer that compensates for signal loss over long cable runs, ensuring the integrity and quality of the video signal.
• Low Power Consumption: Designed with power efficiency in mind, this device operates with low power consumption, making it ideal for applications where power availability is a concern.
• Output Driver Configuration: The LMH0394SQX/NOPB features a programmable output swing and pre-emphasis, allowing customization to match specific cable types and lengths.
• Integrated Cable Driver: The integrated cable driver ensures a clean, low-jitter signal transmission, essential for high-quality video reproduction.
• Robust ESD Protection: It offers excellent ESD protection, which safeguards the device from electrostatic discharges during handling and operation.

Applications

The LMH0394SQX/NOPB is widely used in professional video equipment, including video cameras, digital video recorders, video switchers, and routers. Its robust feature set makes it an ideal choice for broadcast studios, live event production, and any application where reliable, high-quality video transmission is required.

Quality and Reliability

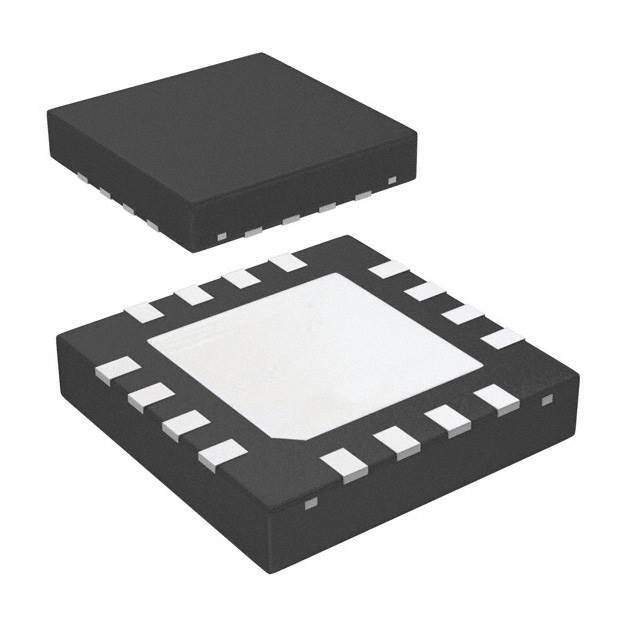

As with all Texas Instruments products, the LMH0394SQX/NOPB is designed to meet the highest standards of quality and reliability. It is available in a surface-mount package that is RoHS compliant and designed for optimal thermal performance.
