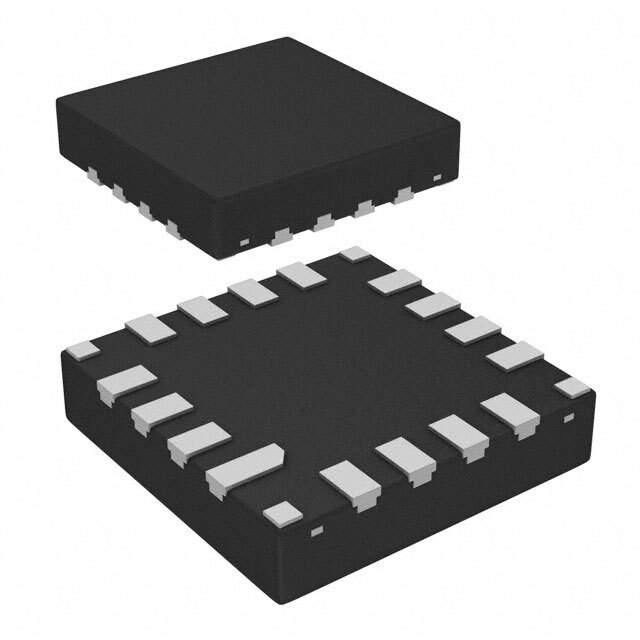

The LMH6401IRMZR from Texas Instruments is a high-performance, digitally controlled variable gain amplifier (DVGA) designed to meet the rigorous demands of modern communication systems. This amplifier is part of TI's PowerWise® family, offering outstanding dynamic performance while maintaining efficiency across a wide range of operating conditions.

Key Features

• Frequency Range: The device operates over a broad frequency range from DC to 10 GHz, making it suitable for a wide variety of RF and IF applications.
• Gain Control: With a digital gain control range of 31.5 dB in 0.5 dB step increments, the LMH6401IRMZR allows for precise gain setting, which is essential for applications requiring accurate signal amplitude adjustments.
• High Linearity: Exhibiting an OIP3 of 43 dBm at 200 MHz, this amplifier maintains a high degree of linearity, ensuring minimal signal distortion even at high output power levels.
• Low Noise Figure: The low noise figure of 4.5 dB at maximum gain optimizes system sensitivity and dynamic range.
• Power Efficiency: The device operates with a single 5V supply and features a power-down capability, which reduces power consumption when the amplifier is not in active use.

Applications

• Wireless Infrastructure (e.g., 3G, 4G, and 5G base stations)
• Test and Measurement Equipment
• Military and Aerospace Systems
• Broadband Fixed Line Applications
• High-Speed Data Acquisition Systems

Product Specifications

With its robust feature set, the LMH6401IRMZR is an ideal solution for designers looking to improve signal chain performance while reducing power consumption in their high-frequency communication and data acquisition systems.
