The LMK61E2-156M25SIAT is a high-performance, programmable oscillator from Texas Instruments, designed to meet the precise clocking requirements of communication infrastructure, data converters, and high-speed digital signal processing applications. This device is part of the LMK61xx family, which is renowned for its ultra-low jitter and high-frequency stability.

Key Features

• Frequency Range: The oscillator offers a flexible frequency range, with the ability to generate a wide spectrum of output frequencies, thereby providing a versatile solution for various applications.
• Low Jitter Performance: With ultra-low jitter performance, the LMK61E2-156M25SIAT ensures high-quality signal integrity, which is critical for high-speed digital networks and sensitive communication equipment.
• Programmability: Users can program the output frequency with ease, thanks to the integrated EEPROM, which allows for the storage of user-defined configurations. This feature enables quick customization and simplifies design-in processes.
• Voltage Supply: The device operates on a standard 3.3V supply voltage, making it compatible with a wide range of digital systems.

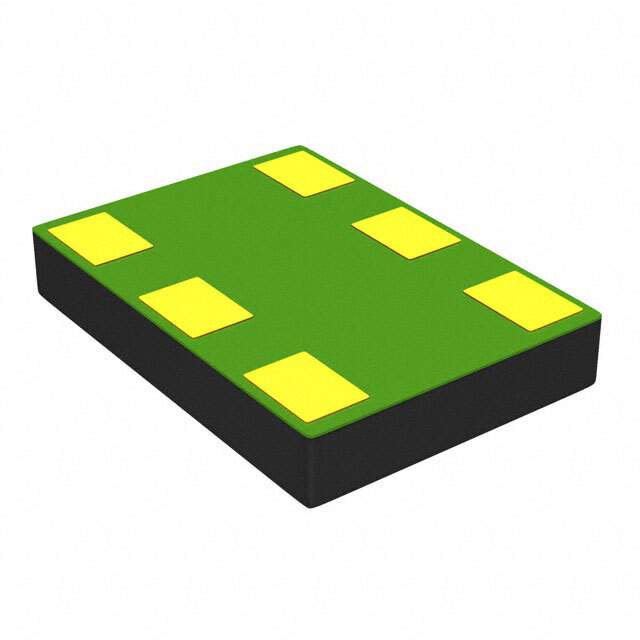

• Package: It is available in a compact, surface-mount package that is suitable for space-constrained applications.

Applications

The LMK61E2-156M25SIAT is ideal for a variety of applications, including but not limited to:

• Networking equipment such as routers, switches, and base stations
• Data acquisition systems and high-speed A/D and D/A converters
• Servers and storage systems requiring high-performance clocking solutions
• Test and measurement equipment
• Industrial and medical electronics that demand precise timing

Conclusion

With its exceptional performance and programmability, the LMK61E2-156M25SIAT from Texas Instruments stands out as a top choice for engineers and designers looking for a reliable and flexible clocking solution. Its ability to deliver ultra-low jitter and maintain frequency stability under various conditions makes it an indispensable component in the design of sophisticated electronic systems.
