LMR10520YSDE/NOPB

Part No LMR10520YSDE/NOPB
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - DC DC Switching Regulators

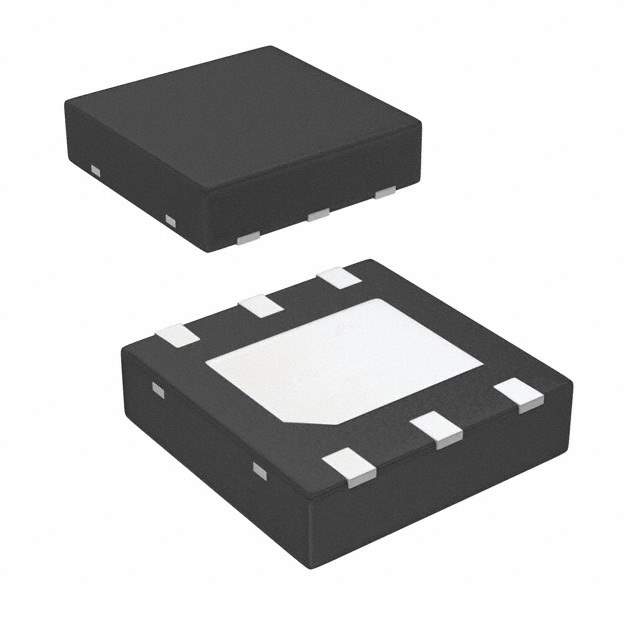

Description IC REG BUCK ADJ 2A 6WSON
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Purpose Step-Down
Topology Buck
Output Type Adjustable
Number of Outputs 1
Minimum Input Voltage 3V
Maximum Input Voltage 5.5V
Nominal Output Voltage (Min/Fixed) 0.6V
Maximum Output Voltage 4.5V
Output Current 2A
Frequency - Switching 3MHz
Synchronous Rectifier No
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package 6-WSON (3x3)
Win Source Part Number 1055559-LMR10520YSDE/NOPB
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LMR10520YSDE/NOPB CAD Model

Description

The LMR10520YSDE/NOPB is a high-performance, easy-to-use, step-down DC/DC converter from Texas Instruments, designed to deliver a constant, reliable power supply in a compact package. This voltage regulator is part of Texas Instruments' SIMPLE SWITCHER® series, which is renowned for providing simple and efficient power solutions. The LMR10520YSDE/NOPB is an ideal choice for a wide range of applications, including portable devices, wireless communication equipment, and various other battery-operated devices.

Key Features

  • Output Voltage: Capable of delivering an adjustable output voltage from 1.285V to 14V, this versatile converter meets the needs of various circuits and applications.
  • Current Capability: It supports up to 2A of output current, ensuring sufficient power for most low-to-medium power requirements.
  • High Efficiency: With a typical efficiency of up to 93%, it minimizes energy loss, thus extending battery life in portable applications.
  • Frequency: The switching frequency is fixed at 1.6 MHz, allowing the use of small surface-mount inductors and capacitors, which reduces the overall solution size and saves board space.
  • Thermal Performance: The device operates over an industrial temperature range of -40°C to 125°C, ensuring reliable performance under varying environmental conditions.
  • Protection Features: It includes built-in thermal shutdown, overcurrent protection, and undervoltage lockout to safeguard the device and the load from adverse conditions.

Package and Availability

The LMR10520YSDE/NOPB comes in a small 6-pin LLP package, which is highly suitable for space-constrained applications. Its lead-free and RoHS-compliant design reflects Texas Instruments' commitment to environmental sustainability. Additionally, the NOPB designation indicates that the product is "not for new designs," which may be relevant for designers considering long-term product availability and lifecycle.

Applications

  • Portable and Battery-Powered Devices
  • Wireless Communication Equipment
  • Power Supply for Sensors and IoT Devices
  • Consumer Electronics
  • Point-of-Load Conversions

Overall, the LMR10520YSDE/NOPB from Texas Instruments is a reliable and efficient solution for designers seeking a compact and high-performance step-down converter for their power management needs.
