The LMR36503RS3QRPERQ1 from Texas Instruments is a highly efficient, automotive-grade, synchronous step-down (buck) converter designed to meet the rigorous standards of the automotive industry. This compact and reliable power solution is ideal for a wide range of automotive applications, including infotainment systems, advanced driver assistance systems (ADAS), and powertrain controls.

Key Features

• Wide Input Voltage Range: The device operates from an input voltage range of 4.2V to 65V, making it suitable for handling unpredictable automotive battery voltages and load dump scenarios.
• High Efficiency: With its synchronous rectification and advanced MOSFET technology, the LMR36503RS3QRPERQ1 achieves high efficiency, which helps in reducing thermal stress and improving system reliability.

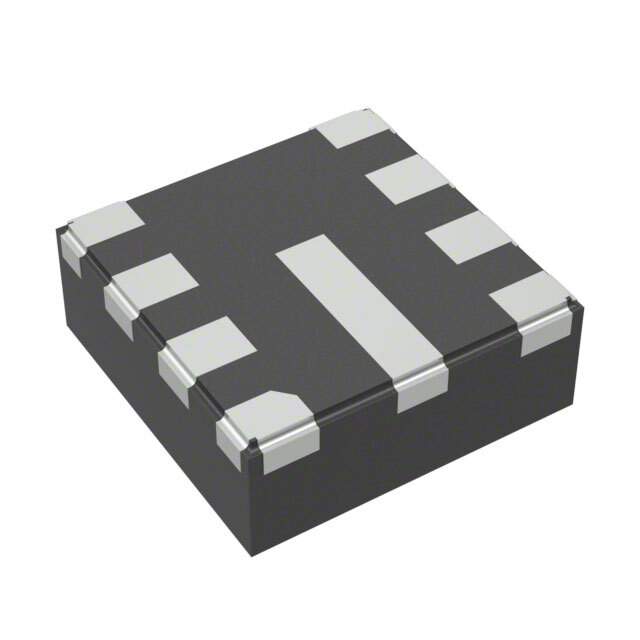

• Compact Footprint: The power converter is available in a small 2mm x 3mm VQFN package, which is optimized for space-constrained applications.
• Robust Thermal Performance: The device is designed to operate in the extended temperature range typical of automotive environments, ensuring performance under varying conditions.
• Adjustable Switching Frequency: The LMR36503RS3QRPERQ1 allows for an adjustable switching frequency from 200 kHz to 2.2 MHz, providing flexibility to optimize between efficiency and external component size.

Protection Features

The converter incorporates multiple protection features to ensure the safety and longevity of automotive systems:

• Overcurrent Protection (OCP)
• Thermal Shutdown (TSD)
• Undervoltage Lockout (UVLO)
• Input Overvoltage Protection (OVP)

Automotive Qualifications

The LMR36503RS3QRPERQ1 meets stringent automotive qualification standards, including:

• AEC-Q100 qualified for automotive applications
• Manufactured in ISO/TS16949 certified facilities

Applications

With its robust feature set and automotive qualifications, the LMR36503RS3QRPERQ1 is suitable for a variety of automotive applications, such as:

• Infotainment and Telematics
• ADAS and Safety Systems
• Body Control Modules
• Powertrain and Engine Control Units

Overall, the LMR36503RS3QRPERQ1 step-down converter from Texas Instruments is a versatile and dependable power management solution that meets the demanding needs of modern automotive electronics.
