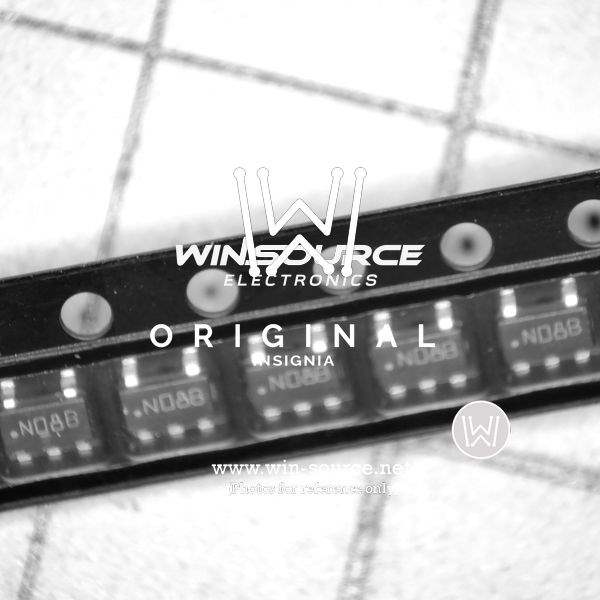

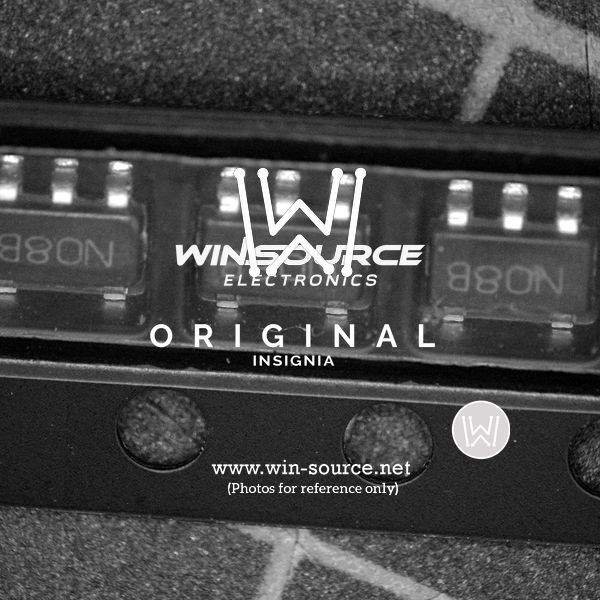

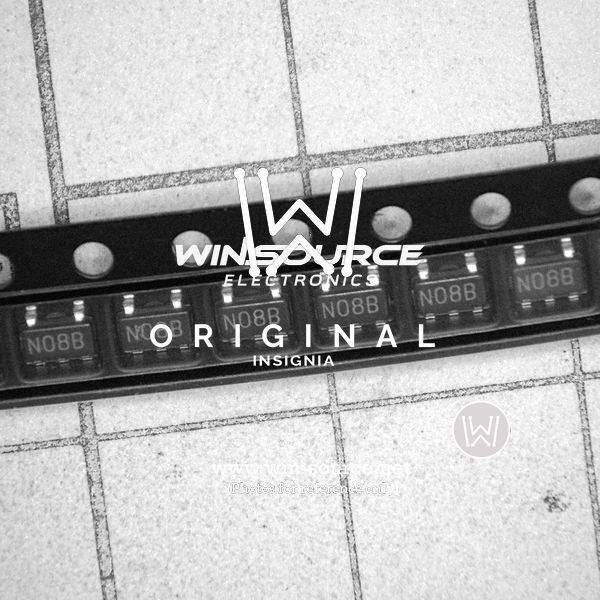

LMV431IM5 Real Image LMV431IM5 real image1823 LMV431IM5 real image1824 LMV431IM5 Real Image
Same model may have multiple batches, images only for reference.
LMV431IM5 Real Image LMV431IM5 real image1823 LMV431IM5 real image1824 LMV431IM5 Real Image
LMV431IM5 Real Image LMV431IM5 real image1823 LMV431IM5 real image1824 LMV431IM5 Real Image
Same model may have multiple batches, images only for reference.

LMV431IM5

Part No LMV431IM5
Manufacturer Texas Instruments
Catalog PMIC - Voltage Reference
Description IC VREF SHUNT ADJ SOT23-5
Datasheet
LMV431IM5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Reference Type Shunt
Output Type Adjustable
Nominal Output Voltage (Min/Fixed) 1.24V
Maximum Output Voltage 30V
Output Current 15mA
Tolerance ±1.5%
Current - Cathode 80μA
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package SOT-23-5
Win Source Part Number 094441-LMV431IM5
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name LMV431
Introduction Date January 01, 2000
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian LMV431IM5 CAD Model

Description

The is a precision low-voltage shunt regulator from Texas Instruments.

  • Output Voltage: 1.24V (Initial Accuracy: 1.5%)
  • Adjustable Voltage Range: 1.24V to 30V
  • Max Output Current: 15mA
  • Dynamic Impedance: 0.2Ω typical
  • Noise: 40µVRMS
  • Operating Temperature Range: -40°C to 125°C
  • Package: SOT-23
  • Features: High stability, low power consumption, wide operating temperature range, and protection against short circuits and overheating
