Overview of Texas Instruments LMX2531LQ1226E/NOPB

The LMX2531LQ1226E/NOPB is a high-performance, low-power frequency synthesizer system from Texas Instruments that integrates a delta-sigma fractional-N PLL (phase-locked loop), a VCO (voltage-controlled oscillator), and multiple output dividers. This device is designed to generate a stable, precise clock frequency which can be used in a variety of communication applications, including wireless handsets, WLAN, data cards, and other related RF (radio frequency) systems.

Key Features

• High Frequency Range: The device is capable of generating frequencies ranging from 0.62 GHz to 1.1 GHz, making it versatile for various applications.
• Low Phase Noise: The LMX2531LQ1226E/NOPB boasts excellent phase noise performance, which is critical for maintaining signal integrity in communication systems.
• Programmable Dividers: It includes programmable dividers, allowing for a wide range of output frequencies and fine resolution.
• Power Efficiency: Designed with power efficiency in mind, the device operates with a low current consumption, thereby extending battery life in portable applications.
• Fast Lock Time: The PLL achieves a fast lock time, improving performance in systems that require quick frequency changes.
• Digital Lock Detect: The inclusion of a digital lock detect feature ensures reliable operation by confirming that the PLL is locked to the desired frequency.

Applications

• Wireless Handsets
• WLAN, WiMAX, and other RF Systems
• Data Cards for Wireless Communication
• General-Purpose Frequency Synthesis

Package and Quality

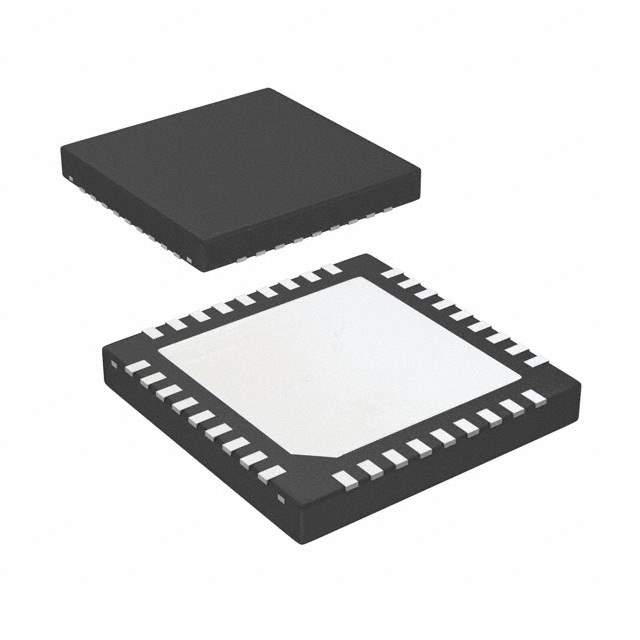

The LMX2531LQ1226E/NOPB is offered in a compact 36-pin WQFN (quad flat no-leads) package, which is suitable for space-constrained applications. Texas Instruments provides this product with a standard lead-free finish, and it is RoHS compliant, ensuring adherence to environmental standards. As with all Texas Instruments products, this frequency synthesizer is manufactured to high-quality standards, ensuring reliability and performance for your application needs.
