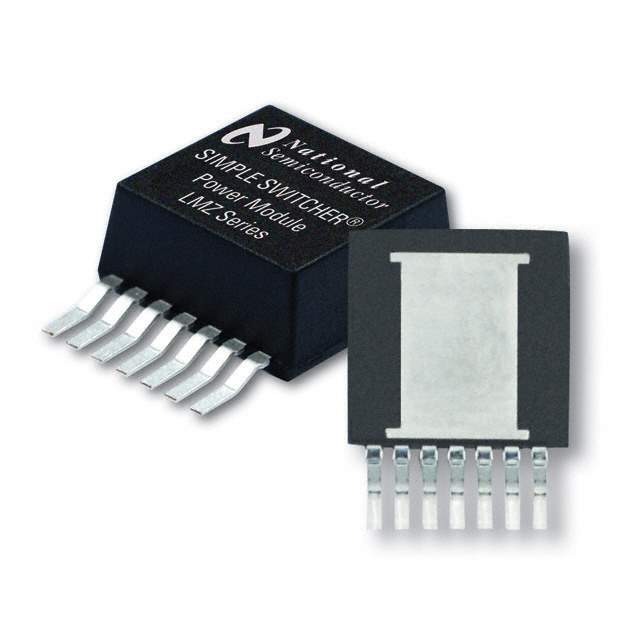

Product Overview: LMZ12001EXTTZ/NOPB

The LMZ12001EXTTZ/NOPB is a highly efficient, easy-to-use power module from Texas Instruments, designed to simplify the process of power supply design. This compact, integrated module is a part of Texas Instruments' SIMPLE SWITCHER® series and is engineered to deliver exceptional performance with minimal external components, making it an ideal choice for space-constrained applications.

Key Features

• Output Voltage Range: The LMZ12001EXTTZ/NOPB offers an adjustable output voltage range from 0.8V to 6V, which allows for versatile usage across various applications.
• Input Voltage Range: The module operates over a wide input voltage range of 4.5V to 20V, accommodating a variety of power sources.
• High Efficiency: With an efficiency of up to 95%, this power module ensures minimal power loss and heat generation, which is crucial for maintaining the reliability and longevity of electronic systems.
• Integrated Inductor: The inclusion of an integrated shielded inductor simplifies layout and reduces the need for external components, saving both board space and additional sourcing time.
• Output Current: Capable of delivering up to 1A of continuous output current, this module can power a wide range of low-power devices and circuits.
• Thermal Performance: Enhanced thermal performance is achieved through an innovative package design that facilitates effective heat dissipation.
• Protection Features: The LMZ12001EXTTZ/NOPB is equipped with an array of protection features including over-temperature protection, under-voltage lockout, and over-current protection, ensuring safe and reliable operation under various conditions.

Applications

The flexibility and robustness of the LMZ12001EXTTZ/NOPB make it suitable for a diverse range of applications including telecommunications, networking equipment, industrial systems, and consumer electronics. Its ease of use is particularly beneficial for rapid prototyping and design in environments where time-to-market is critical.

Conclusion

As a testament to Texas Instruments' commitment to innovation and quality, the LMZ12001EXTTZ/NOPB stands out as a high-performance, reliable power solution. Its compact size, comprehensive protection features, and high efficiency make it a top choice for designers looking to optimize their power management systems with minimal effort and maximum results.
