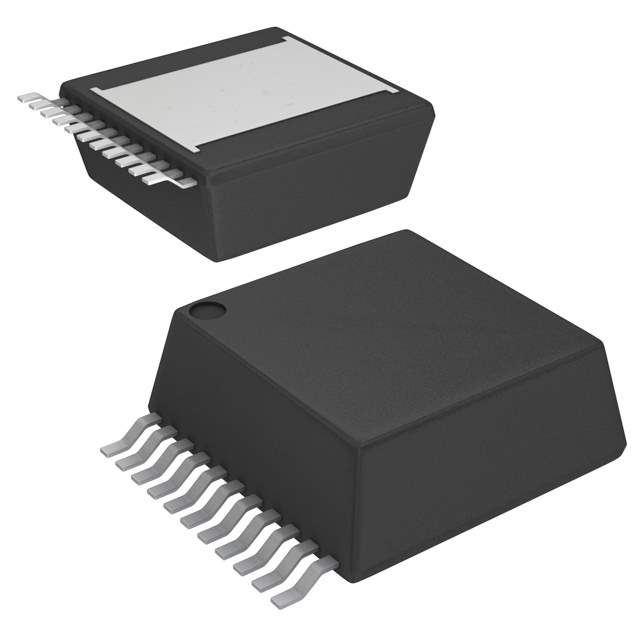

The LMZ13610TZE/NOPB is a high-performance, easy-to-use power module from Texas Instruments. This power solution integrates a DC/DC converter, inductor, and passives into a compact, QFN package. Designed to simplify the power supply design process, the LMZ13610TZE/NOPB is capable of delivering up to 10A of output current with exceptional power conversion efficiency, thermal performance, and power density.

Key Features

• Output Current: Capable of delivering up to 10A of continuous output current.
• Input Voltage Range: Operates over a wide input voltage range of 6V to 36V, making it suitable for a variety of industrial and communication applications.
• Adjustable Output Voltage: The output voltage can be adjusted from 0.8V to 6V to accommodate different loads and applications.
• High Efficiency: Features an innovative design that achieves high efficiency and reduces power loss, with efficiencies up to 95%.
• Integrated Shielded Inductor: The inclusion of a high-quality, shielded inductor within the module ensures minimal electromagnetic interference (EMI) and a reduced footprint on the PCB.
• Thermal Performance: Excellent thermal performance due to an integrated heat sink and the use of high thermal conductivity materials.
• Protection Features: Equipped with a range of protection features including over-temperature, over-current, and under-voltage lockout to ensure safe operation under various conditions.
• Quality and Reliability: Manufactured by Texas Instruments, a leader in semiconductor solutions, ensuring high standards of quality and reliability.

Applications

The LMZ13610TZE/NOPB is ideal for a broad range of applications that require a reliable and efficient power supply. This includes telecommunications, networking equipment, industrial machinery, and test equipment. Its ease of use and compact size make it particularly well-suited for space-constrained applications.

Environmental and Regulatory Compliance

This power module is lead-free and RoHS compliant, minimizing the environmental impact and meeting regulatory requirements for hazardous substances. The NOPB designation indicates that the product is not provided with a lead-based solder finish, making it suitable for lead-free soldering processes.
